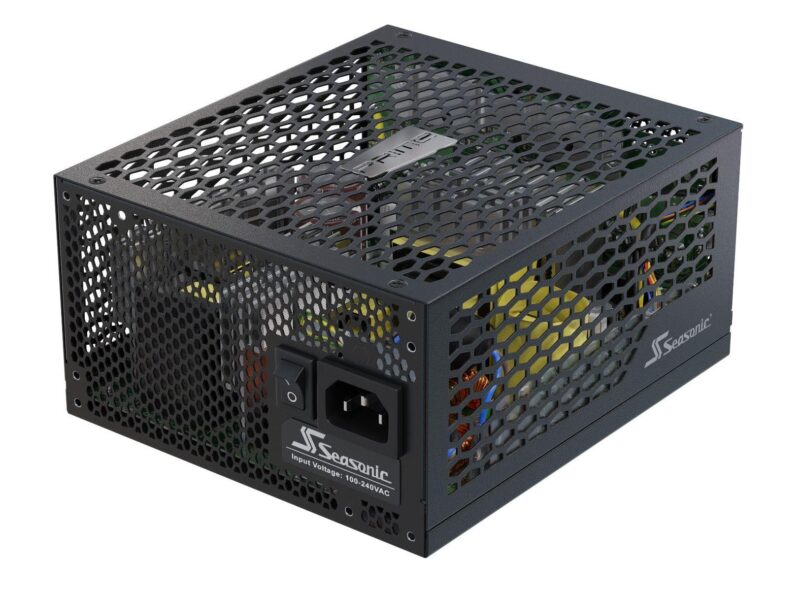

Power Supply|SEASONIC|PRIME FANLESS TX|ATX|PC|100 – 240 V|700 W|PRIME-TX-700

289,51

Seasonic PRIME Fanless TX. Total power: 700 W, AC input voltage: 100 – 240 V, AC input frequency: 50 – 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 450,800,810 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Titanium. Product colour: Black, Cooling type: Passive. Compliance certificates: RoHS, Certification: cTUVus, TUV, CB, CCC, BSMI, EAC, CE, WEEE, ErP Lot 6, REACH

ΑΓΟΡΑ

Εξαντλημένο

Κωδικός προϊόντος: 1427530 Κατηγορία: Μάρκα:

PRIME Fanless TX utilizes the fanless technology, which eliminates the fan noise completely, ensuring truly quiet operation. The unit not only is rated to be 80PLUS Titanium efficient, but it also has the highest power output on the fanless power supply market at the moment. The power supply is ideal any situations that demand silence from the equipment. The high quality components inside and the innovative circuit design result in clean and stable power output. The fully modular cables allow for better cable management in the computer case.

80 PLUS® Titanium
The PRIME Titanium Series achieves the highest level of 80 PLUS® Titanium certification on the market with its 94 % efficiency at 50 % system load.

Micro Tolerance Load Regulation
Seasonic’s latest design keeps the output voltage within a very tight range, achieving under 0.5 % load regulation. This impressive electrical performance and stability makes this power supply an ideal choice for high-performance systems.

Seasonic Fanless Design
Cooling fans inside the power supply are replaced by passive cooling based on heat dissipation. Silent operation does not only provide a more pleasant working environment but it also results in less power consumption and lower utility bills.

  • ATX 12 V
  • Full Modular
  • 80 PLUS Titanium Certified
  • Dimensions: 170 mm (L) x 150 mm (W) x 86 mm (H)
Vendor Homepage

https://seasonic.com/prime-fanless-tx

Category Code

PSU

Unit Box Height

0.19

Unit Box Length

0.345

Unit Box Width

0.115

AC input frequency

50 – 60 Hz Hz

AC input voltage

100 – 240 V V

Combined power (+3.3V)

100 W W

Combined power (+5V)

100 W W

Combined power (+5Vsb)

15 W W

Combined power (-12V)

3.6 W W

Efficiency

94% %

Input current

4.5 – 9.5 A A

Max output current (+3.3V)

20 A A

Max output current (+5V)

20 A A

Max output current (+5Vsb)

3 A A

Max output current (-12V)

0.3 A A

Power protection features

Over current, Over power, Over voltage, Short circuit, Under voltage

Total power

700 W W

Cabling type

Fully-Modular

CPU power cable length

65 cm mm

CPU power connectors (8-pin)

2

Motherboard power cable length

61 cm mm

Motherboard power connector

20+4 pin ATX

Number of SATA power connectors

3

PCI Express power cable length

75 cm mm

PCI Express power connectors (6+2 pin)

4

Peripheral (Molex) power cable length

300,470,690 mm mm

Peripheral (Molex) power connectors (4-pin)

3

SATA power cable length

450,800,810 mm mm

80 PLUS certification

80 PLUS Titanium

Mean time between failures (MTBF)

150000 h h

Power supply unit (PSU) form factor

ATX

Purpose

PC

Supported motherboard form factors

ATX

Cooling type

Passive

On/off switch

Yes

Product colour

Black

Operating temperature (T-T)

0 – 45 °C °C

Certification

cTUVus, TUV, CB, CCC, BSMI, EAC, CE, WEEE, ErP Lot 6, REACH

Compliance certificates

RoHS

Depth

170 mm mm

Height

86 mm mm

Width

150 mm mm

Package type

Box

Sustainability certificates

ENERGY STAR

Harmonized System (HS) code

84733020

Model name

PRIME FANLESS TX

Units per Shipping Box

1

Unit Calculated Volume

0.007538 cubm

Unit Calculated Weight

3.44 kg
