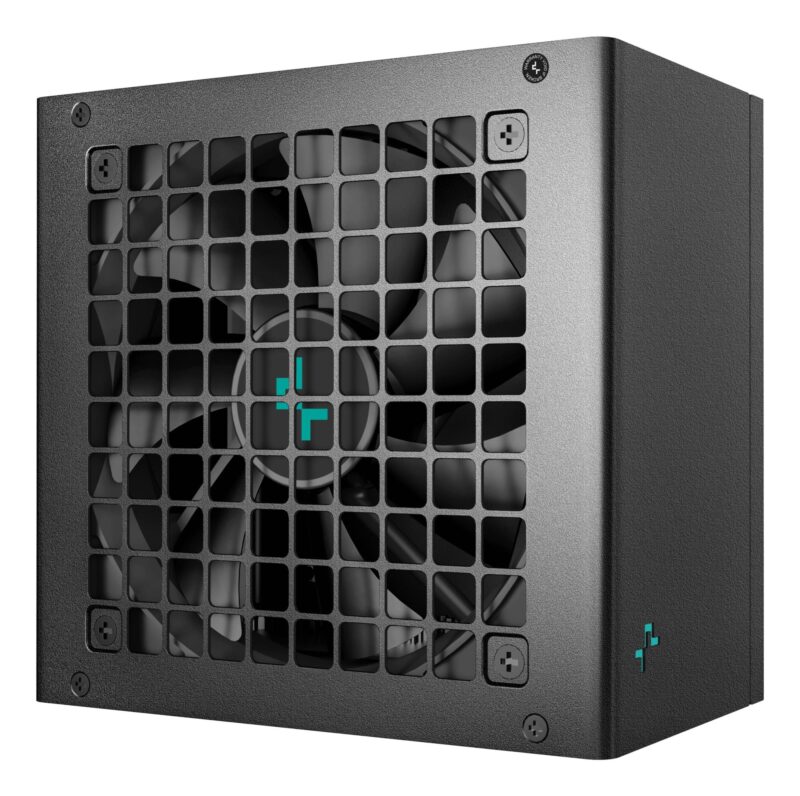

Power Supply|DEEPCOOL|ATX|PC|100 - 240 V|750 W|R-PN750M-FC0B-JGEU

Power Supply|DEEPCOOL|ATX|PC|100 – 240 V|750 W|R-PN750M-FC0B-JGEU

103,30 €

Gamer Storm PN750M. Total power: 750 W, AC input voltage: 100 – 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 450,570,690,810 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA

ΑΓΟΡΑ

Σε απόθεμα

Κωδικός προϊόντος: 1446197 Κατηγορία: Μάρκα:

PN750M
The DeepCool PN750M is a new power supply that meets the latest Intel ATX 3.1 and PCIe 5.1 standard. With a dedicated 12V-2×6, 5 EPS/PCIe ports, the PN750M provides stable power for a wide range of modern high-power components.

PN750M
NATIVE ATX3.1

FUTURE PROOF
With the ability to provide twice the total system power for 0.1 ms, random power spikes will never be an issue. The PN750M will provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.

GRACEFUL GOLD
80 Plus Gold certified to meet a high level of power efficiency under 90% of typical loads. Each unit is also rated Gold by Cybenetics.

POWER YOU CAN TRUST
Through the use of a main Japanese electrolytic capacitor, active PFC, full-bridge SRC LLC, and a DC-to-DC topology, the PN750M can keep the hold-up time to ≥ 16 ms under a high load of 80%.

PCI-E 5.1 POWER
Equipped with a high-grade 105C-resistant 16AWG copper-core embossed 12V-2×6 cable, the PN750M provides up to 450W for modern GPUs.

SLEEVED CABLES
The PN750M has been outfitted with sleeved cables right out of the box! A welcomed upgrade to add to the premium asesthic and feel of the PSU.

DYNAMIC FDB FAN
The PN750M comes equipped with a dynamic 120mm FDB fan that will adjust its speed based on the cooling needs of the PSU.

HIGH QUALITY BUILD
Due to the high quality of the parts utilized, the PN750M will operate at altitudes up to 5000 meters above sea level.

PEACE OF MIND
The PN750M comes standard with a slew of well-rounded safeguards, including OPP, OVP, SCP, OTP, OCP, UVP, NLO, and SIP.

EXCELLENT COVERAGE
The PN750M is engineered and manufactured at such a high level that DeepCool is offering a lengthy 10 years of trouble-free limited warranty coverage.

Vendor Homepage

https://www.deepcool.com/products/PowerSupplyUnits/powersupplyunits/PN750M-ATX3.1-Modular-Power-Supply/2023/17877.shtml
Category Code

PSU
Unit Box Height

0.195
Unit Box Length

0.3
Unit Box Width

0.115
AC input frequency

50/60 Hz Hz
AC input voltage

100 – 240 V V
Combined power (+3.3V)

110 W W
Combined power (+5V)

110 W W
Combined power (+5Vsb)

15 W W
Combined power (-12V)

3.6 W W
Efficiency

90% %
Hold time

16 ms ms
Input current

10 – 5 A A
Max output current (+3.3V)

20 A A
Max output current (+5V)

20 A A
Max output current (+5Vsb)

3 A A
Max output current (-12V)

0.3 A A
Power Factor Correction (PFC) type

Active
Power Good signal delay range

100 – 150 ms ms
Power protection features

No load operation/Over power/Over voltage/Overheating/Short circuit/Surge & inrush protection (SIP)/Surge protection/Under voltage
Total power

750 W W
ATX power connector (20+4 pin)

Yes
Cabling type

Fully-Modular
CPU power cable length

70 cm mm
CPU power connector (4+4 pin)

Yes
Motherboard power cable length

55 cm mm
Motherboard power connector

20+4 pin ATX
Number of SATA power connectors

8
PCI Express power connectors (16-pin)

1
PCI Express power connectors (6+2 pin)

3
Peripheral (Molex) power cable length

930 mm
Peripheral (Molex) power connectors (4-pin)

2
SATA power cable length

450/570/690/810 mm
80 PLUS certification

80 PLUS Gold
ATX version

3.1
Bearing technology

FDB
Mean time between failures (MTBF)

100000 h h
Power supply unit (PSU) form factor

ATX
Purpose

PC
Cooling type

Active
Fan diameter

12 cm mm
Fan location

Top
Number of fans

1 fan(s) fan(s)
On/off switch

Yes
Product colour

Black
Operating temperature (T-T)

0 – 40 °C °C
Cable tie(s) included

Yes
Cables included

AC, CPU, PCIe, Peripheral (Molex), SATA
Compliance certificates

CCC/CE/EAC/Federal Communications Commission (FCC)/RCM/RoHS/WEEE
Depth

140 mm mm
Height

86 mm mm
Width

150 mm mm
Package type

Box
Sustainability certificates

ErP/Triman
Warranty period

10 year(s) year(s)
Units per Pallet

0
Units per Shipping Box

6
Unit Calculated Volume

0.008794 cubm
Unit Calculated Weight

2.72 kg
