47,57 €

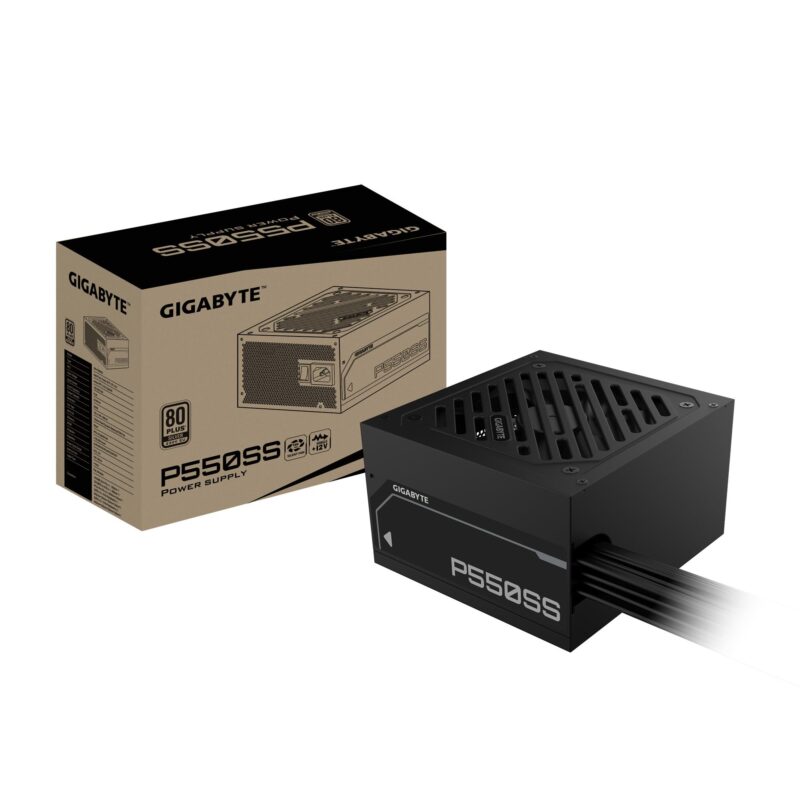

GIGABYTE P550SS Power Supply – PCIe 5.0, 80 PLUS Silver, 120mm Fan, ATX 3.0 compatible, EU Plug. Total power: 550 W, AC input voltage: 155-240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Silver. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 140 mm, Depth: 150 mm, Height: 86 mm

ΑΓΟΡΑ

Σε απόθεμα

Κωδικός προϊόντος: 1421524 Κατηγορία: Desktop Computer PSU Μάρκα: GIGABYTE

Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.

80 PLUS Silver certified (230V EU)
Support Intel ATX 3.0 standard (compatible with ATX 3.1)
120mm Fluid Dynamic Bearing (FDB) Fan
Flat cable design
Powerful single +12V rail
OVP/OPP/SCP/UVP/OCP/OTP protection

Vendor Homepage	https://www.gigabyte.com/
Category Code	PSU
Unit Box Height	0.115
Unit Box Length	0.255
Unit Box Width	0.205
AC input frequency	50/60 Hz Hz
AC input voltage	155-240 V V
Combined power (+3.3V)	100 W W
Combined power (+5V)	100 W W
Combined power (+5Vsb)	15 W W
Combined power (-12V)	3.6 W W
Efficiency	90% %
Hold time	16 ms ms
Input current	6.3 A A
Max output current (+3.3V)	20 A A
Max output current (+5V)	20 A A
Max output current (+5Vsb)	3 A A
Max output current (-12V)	0.3 A A
Power Factor Correction (PFC) type	Active
Power Good signal delay range	100 – 150 ms ms
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Total power	550 W W
ATX power connector (20+4 pin)	Yes
Cabling type	Non-Modular
CPU power connector (4+4 pin)	Yes
Floppy disk drive connector	Yes
Floppy drive power connector	2
Motherboard power cable length	60 cm mm
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	5
PCI Express connector	Yes
PCI Express power connectors (6+2 pin)	2
Peripheral (Molex) power connectors (4-pin)	4
80 PLUS certification	80 PLUS Silver
ATX version	3.1
Bearing technology	Ball bearing
Mean time between failures (MTBF)	100000 h h
Power supply unit (PSU) form factor	ATX
Purpose	PC
Cooling type	Active
Fan diameter	12 cm mm
Fan location	Top
Number of fans	1 fan(s) fan(s)
On/off switch	Yes
Product colour	Black
Depth	150 mm mm
Height	86 mm mm
Weight	1.86 kg g
Width	140 mm mm
Package depth	206 mm mm
Package height	117 mm mm
Package type	Box
Package weight	2.32 kg g
Package width	254 mm mm
Warranty period	3 year(s) year(s)
Units per Shipping Box	5
Unit Calculated Volume	0.007577 cubm
Unit Calculated Weight	2.2 kg
