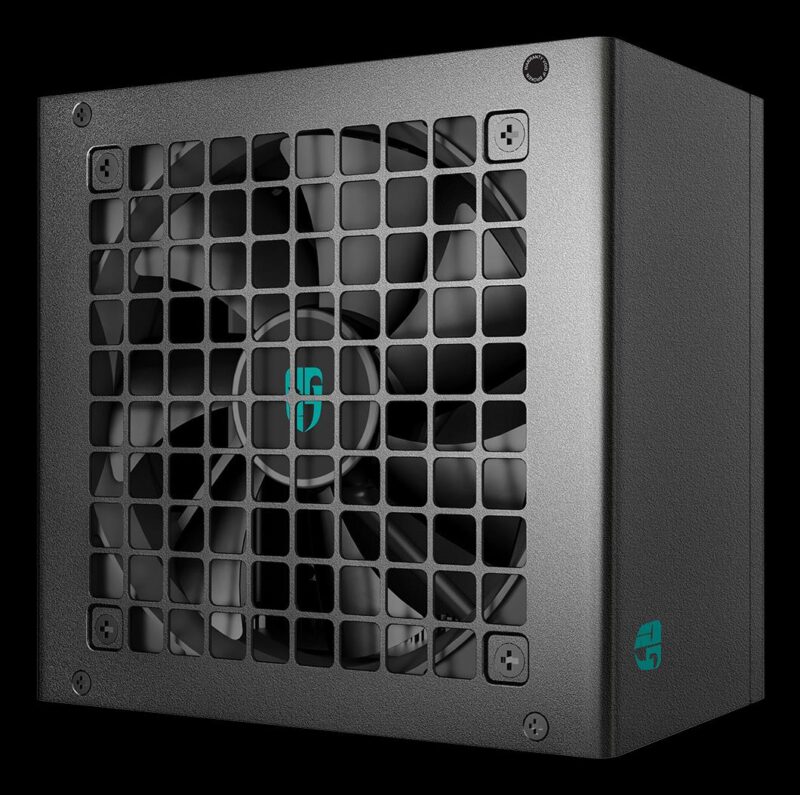

Power Supply|DEEPCOOL|ATX|PC|100 - 240 V|1000 W|R-PNA00D-FC0B-JGEU-V2

Power Supply|DEEPCOOL|ATX|PC|100 – 240 V|1000 W|R-PNA00D-FC0B-JGEU-V2

133,56 €

Gamer Storm PN1000D. Total power: 1000 W, AC input voltage: 100 – 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 450,570,690,810,930 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC

ΑΓΟΡΑ

Σε απόθεμα

Κωδικός προϊόντος: 1446191 Κατηγορία: Μάρκα:

FUTURE PROOF
With the ability to provide three times the TGP for 0.1 ms, random power spikes will never be an issue. The PN1000D will provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.

POWER YOU CAN TRUST
Through the use of a premium main electrolytic capacitor, active PFC, full-bridge SRC LLC, and a DC-to-DC topology, the PN650D can keep the hold-up time to ≥ 16 ms under a high load of 80%.

PCI-E 5.1 POWER
Equipped with a high-grade 105C-resistant 16AWG copper-core sleeved 12V-2×6 cable, the PN650D provides up to 450W for modern GPUs.

DYNAMIC HYDRO BEARING FAN
The PN650D comes equipped with a dynamic 120mm hydro bearing fan that will adjust its speed based on the cooling needs of the PSU.

HIGH QUALITY BUILD
Due to the high quality of the parts utilized, the PN650D will operate at altitudes up to 5000 meters above sea level.

PEACE OF MIND
The PN650D comes standard with a slew of well-rounded safeguards, including OPP, OVP, SCP, OTP, OCP, UVP, NLO, and SIP.

EXCELLENT COVERAGE
The PN650D is engineered and manufactured at such a high level that is offering a lengthy 10 years of trouble-free limited warranty coverage.

Vendor Homepage

https://www.gamerstorm.com/
Category Code

PSU
Unit Box Height

0.195
Unit Box Length

0.305
Unit Box Width

0.115
AC input frequency

50/60 Hz Hz
AC input voltage

100 – 240 V V
Combined power (+3.3V)

110 W W
Combined power (+5V)

110 W W
Combined power (+5Vsb)

15 W W
Combined power (-12V)

3.6 W W
Efficiency

90% %
Hold time

16 ms ms
Input current

13.0 – 6.5 A A
Max output current (+3.3V)

20 A A
Max output current (+5V)

20 A A
Max output current (+5Vsb)

3 A A
Max output current (-12V)

0.3 A A
Power Factor Correction (PFC) type

Active
Power protection features

No load operation/Over current/Over power/Over voltage/Overheating/Short circuit/Surge and inrush/Under voltage
Total power

1000 W W
ATX power connector (20+4 pin)

Yes
Cabling type

Non-Modular
CPU power cable length

70 cm mm
CPU power connector (4+4 pin)

Yes
Motherboard power cable length

55 cm mm
Motherboard power connector

20+4 pin ATX
Number of SATA power cables

2
Number of SATA power connectors

8
PCI Express connector

Yes
PCI Express power cable length

55 cm mm
PCI Express power connectors (6+2 pin)

3
Peripheral (Molex) power cable length

120 mm
Peripheral (Molex) power connectors (4-pin)

2
SATA power cable length

450/570/690/810/930 mm
80 PLUS certification

80 PLUS Gold
ATX version

3.1
Bearing technology

Hydro bearing
Mean time between failures (MTBF)

100000 h h
Power supply unit (PSU) form factor

ATX
Purpose

PC
Cooling type

Active
Fan diameter

12 cm mm
Fan location

Top
Number of fans

1 fan(s) fan(s)
On/off switch

Yes
Product colour

Black
Operating temperature (T-T)

0 – 40 °C °C
Cables included

AC
Certification

P65, Cybenetics Gold
Compliance certificates

CCC/CE/EAC/Federal Communications Commission (FCC)/RCM/RoHS/TÜV mark
Waste Electrical and Electronic Equipment (WEEE) compliance

Yes
Depth

140 mm mm
Height

86 mm mm
Width

150 mm mm
Package type

Box
Sustainability certificates

ErP/Triman
Warranty period

10 year(s) year(s)
Cable ties included

Yes
Screws included

Yes
Units per Pallet

0
Units per Shipping Box

5
Unit Calculated Volume

0.008629 cubm
Unit Calculated Weight

3.26 kg
