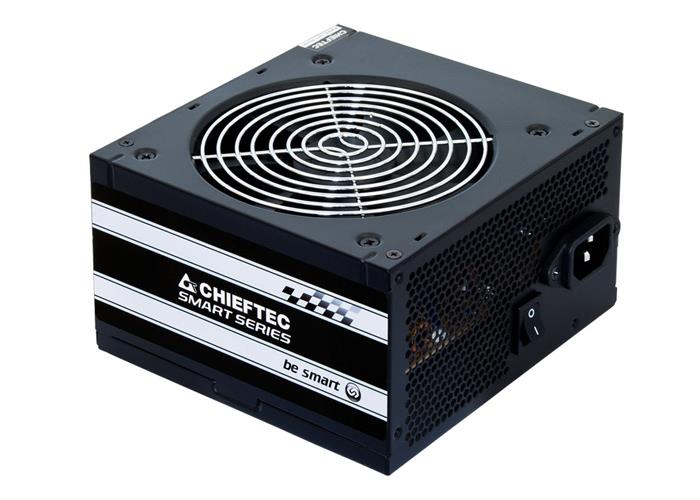

Chieftec Smart GPS-700A8. Total power: 700 W, AC input voltage: 230 V, Power Factor Correction (PFC) type: Active. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: PS/2. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 87 mm

ΑΓΟΡΑ

Σε απόθεμα

Κωδικός προϊόντος: 1207538 Κατηγορία: Desktop Computer PSU Μάρκα: CHIEFTEC

The smart series offers both quality and efficiency. The PSU itself is painted in decent black, equipped with long native cables, a power cord, and a solid carton to protect it. With an efficiency of over 80%, the SMART SERIES fulfills the requirement of green power at an attractive price.

Vendor Homepage	https://www.chieftec.eu/products-detail/178/SMART_SERIES/243/GPS-700A8
Category Code	PSU
Unit Box Height	0.165
Unit Box Length	0.225
Unit Box Width	0.1
AC input voltage	230 V V
Combined power (+5Vsb)	12.5 W W
Combined power (-12V)	3.6 W W
Efficiency	80% %
Max output current (+12V1)	54 A A
Max output current (+3.3V)	22 A A
Max output current (+5V)	22 A A
Max output current (+5Vsb)	2.5 A A
Max output current (-12V)	0.3 A A
Power factor	0.9
Power Factor Correction (PFC) type	Active
Power protection features	Over voltage, Overload, Short circuit, Under voltage
Total power	700 W W
Cabling type	Non-Modular
EPS power connector (8-pin)	Yes
Floppy drive power connector	1
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	6
PCI Express power connectors (6+2 pin)	2
Peripheral (Molex) power connectors (4-pin)	2
80 PLUS certification	No
ATX version	2.3
Power supply unit (PSU) form factor	PS/2
Purpose	PC
Cooling type	Active
Fan diameter	12 cm mm
Number of fans	1 fan(s) fan(s)
Product colour	Black
Depth	140 mm mm
Height	87 mm mm
Weight	1.62 kg g
Width	150 mm mm
Model name	GPS-700A8
Units per Pallet	0
Units per Shipping Box	10
Unit Calculated Volume	0.004845 cubm
Unit Calculated Weight	1.83 kg
