148,23 €

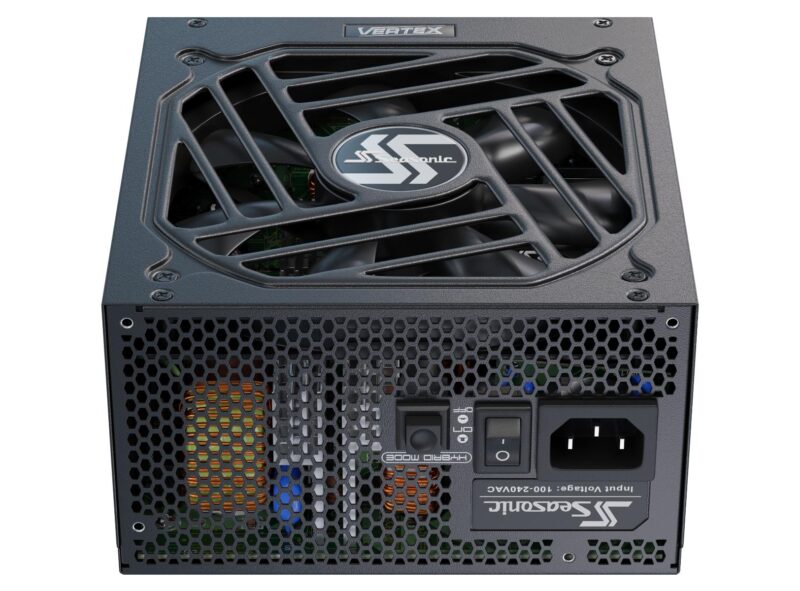

Seasonic Vertex GX-750. Total power: 750 W, AC input voltage: 100 – 240 V, AC input frequency: 50 – 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 950 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Cables included: AC, CPU, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA

ΑΓΟΡΑ

Εξαντλημένο

Κωδικός προϊόντος: 1427523 Κατηγορία: Desktop Computer PSU Μάρκα: SEASONIC

80 PLUS GOLD
The Vertex GX Series achieves 80 PLUS Gold certification with its 90 % efficiency at 50 % system load.

ATX 3.0 AND 16-PIN PCIE GEN 5 CABLE (12VHPWR)
Seasonic’s latest Vertex Series is designed and built to power new PC components requiring the new ATX 3.0 and PCIe 5.0 standards.

PREMIUM HYBRID FAN CONTROL
Seasonic’s vast experience in designing the most silent and efficient power supplies on the market was translated into the development of Hybrid Mode; a state-of-the-art fan control that enables users to keep the overall fan noise at the lowest possible level.

FLUID DYNAMIC FAN BEARING
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.

HOW IT WORKS
When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces. As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.

Super-High Efficiency, 80 PLUS Gold Certified
Fully Modular
ATX 3.0 and 16-Pin PCIe Gen 5 Cable (12VHPWR)
Top-Quality 135 mm Fluid Dynamic Bearing Fan
Premium Hybrid Fan Control
Tight Voltage Regulation (12 V, 5 V and 3.3 V) [± 3 %]
Gold Plated High Current Terminal (MB, CPU and PCIe)

Vendor Homepage	https://seasonic.com/vertex-gx#specification
Category Code	PSU
Unit Box Height	0.185
Unit Box Length	0.35
Unit Box Width	0.12
AC input frequency	50 – 60 Hz Hz
AC input voltage	100 – 240 V V
Combined power (+3.3V)	125 W W
Combined power (+5V)	125 W W
Combined power (+5Vsb)	15 W W
Combined power (-12V)	3.6 W W
Input current	10 – 5 A A
Max output current (+3.3V)	20 A A
Max output current (+5V)	20 A A
Max output current (+5Vsb)	3 A A
Max output current (-12V)	0.3 A A
Power protection features	Over current, Over power, Over voltage, Short circuit, Under voltage
Total power	750 W W
ATX power connector (20+4 pin)	Yes
Cabling type	Fully-Modular
CPU power cable length	65 cm mm
CPU power connector (4+4 pin)	Yes
Motherboard power cable length	61 cm mm
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	3
Peripheral (Molex) power cable length	690 mm mm
Peripheral (Molex) power connectors (4-pin)	1
SATA power cable length	950 mm mm
80 PLUS certification	80 PLUS Gold
ATX version	3.0
Bearing technology	FDB
Mean time between failures (MTBF)	150000 h h
Power supply unit (PSU) form factor	ATX
Purpose	PC
Cooling type	Active
Fan diameter	13.5 cm mm
On/off switch	Yes
Product colour	Black
Operating temperature (T-T)	0 – 50 °C °C
Cable tie(s) included	Yes
Cables included	AC, CPU, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA
Certification	cTUVus, TUV, CB, CCC, BSMI, EAC, CE, Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Compliance certificates	CE, REACH, RoHS
Depth	160 mm mm
Height	86 mm mm
Width	150 mm mm
Package type	Box
Warranty period	10 year(s) year(s)
Model name	VERTEX GX
Units per Shipping Box	1
Unit Calculated Volume	0.00777 cubm
Unit Calculated Weight	3.54 kg
