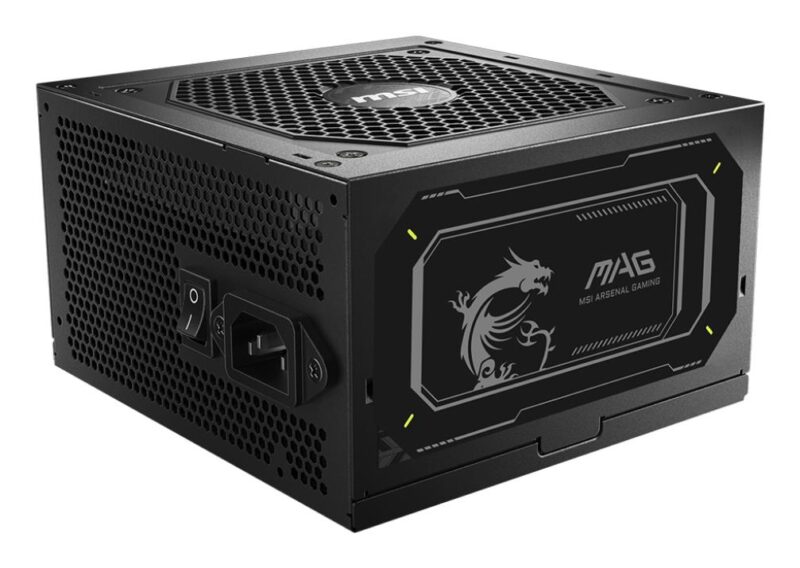

Power Supply|MSI|MAG A750GL PCIE5 II|750 Watts|Efficiency 80 PLUS GOLD|PFC Active|MAGA750GLPCIE5II

120,71 €

MSI MAG A750GL PCIE5 II. Total power: 750 W, AC input voltage: 100 – 240 V, AC input frequency: 47 – 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm

ΑΓΟΡΑ

Σε απόθεμα

Κωδικός προϊόντος: 1436480 Κατηγορία: Desktop Computer PSU Μάρκα: MSI

ATX 3.1 Ready
It has an output port that is compliant with PCIe 5.1 and Intel PSDG(Power Supply Design Guide) ATX 3.1, also the power supply can hold up to 2x total power excursion and 3x GPU power excursion.

ENERGY EFFICIENCY CERTIFICATION
The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.

COMPACT SIZING
Smaller than typical PSUs on the market, this power supply unit that can save space and make it easier to organize cables in the computer case by freeing up more room inside.

ONLY WHAT YOU NEED
The connectors that required by the build need to be used, significantly reducing cable clutter and simplifying the system’s overall build. Additionally, the included cable pack provides a storage solution for any unused cables.

ALL THE MORE ORGANIZED
Organizing cables is often the most bothersome part of building a PC. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow.

FLUID DYNAMIC BEARING
The power supply’s fan sports a fluid dynamic bearing that perfectly balances cooling performance and noise level.

DC to DC & Full bridge
DC to DC and Full bridge be combined to achieve higher conversion efficiency, stable output voltage, and quick voltage adjustment for different usage scenarios, thus providing a stable power supply design.

THE POWER YOU HAVE
The single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply’s CPU & PCIe connectors are more than plenty.

PROTECTION MECHANISMS
To make sure the entire system can operate safely and stably at all times, the power supply comes with a number of protection mechanisms to give you the best peace of mind.

ATX 3.1 ready, native PCIe 5.1 connector
Supports NVIDIA® GeForce RTX™ 40 Series graphics cards
Full modular design,Flat cables
80 Plus Gold certified for high efficiency with Active PFC design
Industrial level protection with OVP, OCP, OPP, OTP, SCP, UVP
120 mm Fluid Dynamic Bearing Fan
LLC Full Bridge Topology with DC-DC module design

Vendor Homepage	https://www.msi.com/Power-Supply/MAG-A750GL-PCIE5-II/Overview
Category Code	PSU
Unit Box Height	0.3
Unit Box Length	0.298
Unit Box Width	0.123
AC input frequency	47 – 63 Hz Hz
AC input voltage	100 – 240 V V
Combined power (+3.3V)	110 W W
Combined power (+5V)	110 W W
Combined power (+5Vsb)	12.5 W W
Combined power (-12V)	3.6 W W
Efficiency	90% %
Max output current (+3.3V)	20 A A
Max output current (+5V)	20 A A
Max output current (+5Vsb)	2.5 A A
Max output current (-12V)	0.3 A A
Number of +12V rail(s)	1
Power Factor Correction (PFC) type	Active
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Total power	750 W W
Cabling type	Fully-Modular
CPU power connector (4+4 pin)	Yes
EPS power connector (4+4 pin)	Yes
Motherboard power cable length	60 cm mm
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	8
PCI Express power connectors (16-pin)	1
PCI Express power connectors (6+2 pin)	3
Peripheral (Molex) power cable length	500 mm mm
Peripheral (Molex) power connectors (4-pin)	4
SATA power cable length	150,500 mm mm
80 PLUS certification	80 PLUS Gold
ATX version	3.1
Bearing technology	FDB
Power supply unit (PSU) form factor	ATX
Purpose	PC
Cooling type	Active
Fan diameter	12 cm mm
Number of fans	1 fan(s) fan(s)
On/off switch	Yes
Product colour	Black
Depth	140 mm mm
Height	86 mm mm
Width	150 mm mm
Package type	Box
Model name	MAG A750GL PCIE5 II
Units per Shipping Box	6
Unit Calculated Volume	0.01012 cubm
Unit Calculated Weight	1.92 kg
