392,80 €

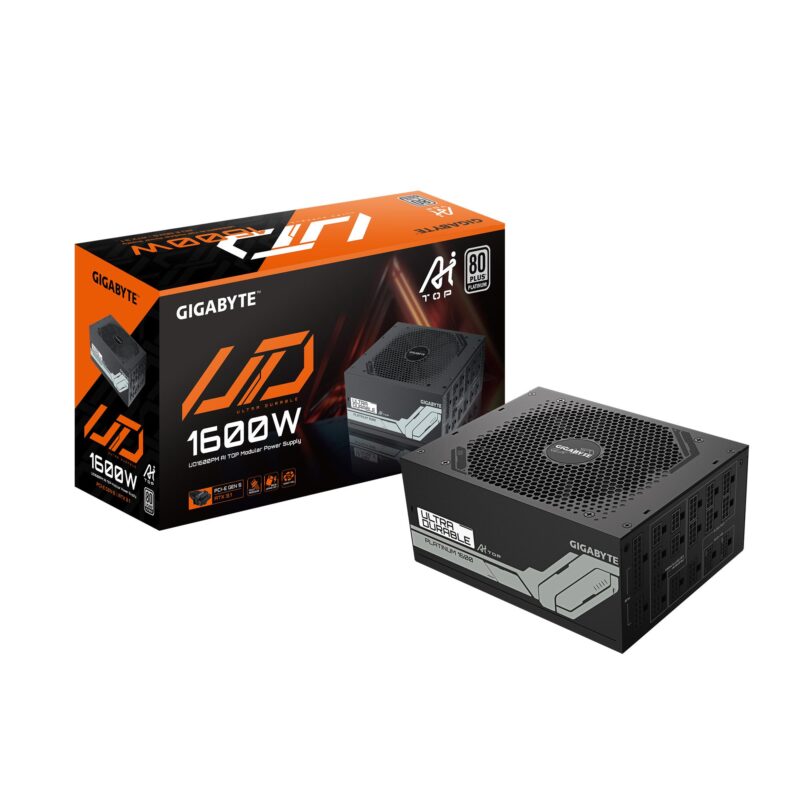

GIGABYTE UD1600PM PG5 AI TOP Power Supply – PCIe 5.0, 80 PLUS Platinum, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug. Total power: 1600 W, AC input voltage: 100 – 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 150,650 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 190 mm, Height: 86 mm

ΑΓΟΡΑ

Σε απόθεμα

Κωδικός προϊόντος: 1426128 Κατηγορία: Desktop Computer PSU Μάρκα: GIGABYTE

Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.

16-pin PCIe cable * 4 support PCIe Gen 5.0 graphic cards
ATX 3.1 and PCIe Gen 5.0 ready
Server-grade Ultra Durable: Main Japanese capacitors, enhanced thermal solution, 140mm smart double ball bearing fan, OVP/OPP/SCP/UVP/OCP/OTP protection
80 PLUS Platinum certified
Fully modular design
Powerful single +12V rail

Vendor Homepage	https://www.gigabyte.com/
Category Code	PSU
Unit Box Height	0.25
Unit Box Length	0.6
Unit Box Width	0.11
AC input frequency	50/60 Hz Hz
AC input voltage	100 – 240 V V
Combined power (+3.3V)	150 W W
Combined power (+5V)	150 W W
Combined power (+5Vsb)	17.5 W W
Combined power (-12V)	9.6 W W
Efficiency	92% %
Hold time	16 ms ms
Input current	15 – 7.5 A A
Max output current (+3.3V)	30 A A
Max output current (+5V)	30 A A
Max output current (+5Vsb)	3.5 A A
Max output current (-12V)	0.8 A A
Power factor	0.9
Power Factor Correction (PFC) type	Active
Power Good signal delay range	100 – 150 ms ms
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Total power	1600 W W
ATX power connector (20+4 pin)	Yes
Cabling type	Fully-Modular
CPU power connector (4+4 pin)	Yes
EPS power connector (4+4 pin)	Yes
Motherboard power cable length	61 cm mm
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	16
PCI Express connector	Yes
PCI Express power connectors (6+2 pin)	8
Peripheral (Molex) power connectors (4-pin)	6
SATA power cable length	150,650 mm mm
80 PLUS certification	80 PLUS Platinum
ATX version	3.1
Bearing technology	DBB
Mean time between failures (MTBF)	100000 h h
Power supply unit (PSU) form factor	ATX
Purpose	PC
Cooling type	Active
Fan diameter	12 cm mm
Fan location	Top
Number of fans	1 fan(s) fan(s)
On/off switch	Yes
Product colour	Black
Depth	190 mm mm
Height	86 mm mm
Weight	5.3 kg g
Width	150 mm mm
Package depth	219 mm mm
Package height	145 mm mm
Package type	Box
Package weight	5.58 kg g
Package width	410 mm mm
Warranty period	10 year(s) year(s)
Model name	GP-UD1600PM PG5
Units per Shipping Box	4
Unit Calculated Volume	0.0165 cubm
Unit Calculated Weight	5.99 kg
