43,85 €

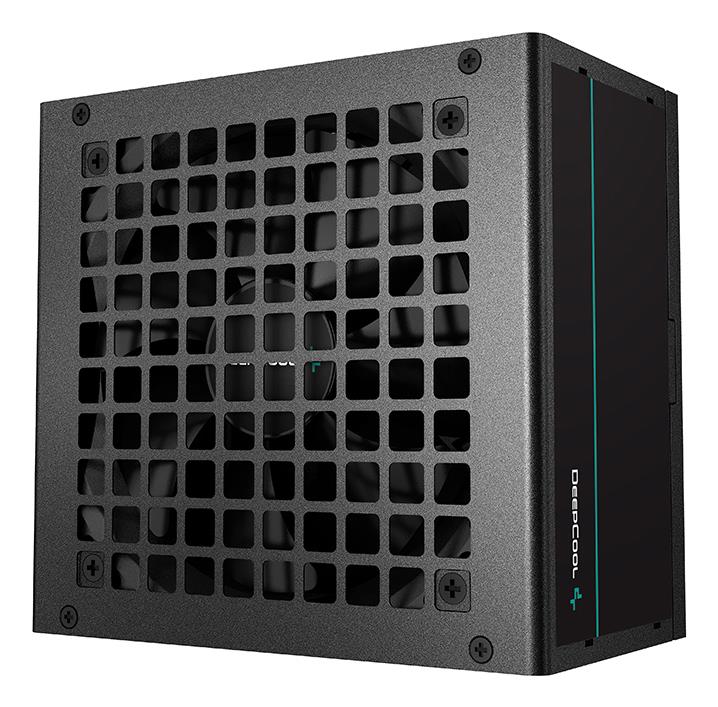

DeepCool PF600. Total power: 600 W, AC input voltage: 220 – 240 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 450,600,750,900 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC

ΑΓΟΡΑ

Εξαντλημένο

Κωδικός προϊόντος: 1436863 Κατηγορία: Desktop Computer PSU Μάρκα: DEEPCOOL

The DeepCool PF Series Power Supply Unit offers safe and stable power performance with reliable 80 PLUS Standard efficiency and affordable pricing.

TO HIGHER STANDARDS
Certified for 80 PLUS 230V EU Standard efficiency that ensures 85% efficiency under typical loading of 50%. Better efficiency translates into lower energy waste and lower temperatures for more cost savings.

SILENT HYDRAULIC BEARING FAN
Optimally balanced for low-noise performance, the 120mm fluid bearing fan improves overall life expectancy and reduces friction and vibration.

FLAT BLACK CABLES
Stealthy and flexible, the fixed flat black cables are easy to maneuver for cable management while also taking up less space in your system.

RELIABLE PROTECTION
Shield against potential risk and damage with overpower, over voltage, and short circuit power protection.

Over Power Protection
Over Voltage Protection
Short Circuit Protection
Under Voltage Protection

Vendor Homepage	https://global.deepcool.com/products/PowerSupplyUnits/powersupplyunits/PF600D-230V-Power-Supply-Unit/2021/15138.shtml?status=authorization
Category Code	PSU
Unit Box Height	0.18
Unit Box Length	0.26
Unit Box Width	0.115
AC input frequency	50 Hz Hz
AC input voltage	220 – 240 V V
Combined power (+3.3V)	100 W W
Combined power (+5V)	100 W W
Combined power (+5Vsb)	12.5 W W
Combined power (-12V)	3.6 W W
Efficiency	85% %
Hold time	16 ms ms
Max output current (+3.3V)	15 A A
Max output current (+5V)	15 A A
Max output current (+5Vsb)	2.5 A A
Max output current (-12V)	0.3 A A
Power protection features	Over power, Over voltage, Short circuit, Under voltage
Total power	600 W W
Cabling type	Non-Modular
EPS power connector (4+4 pin)	Yes
Motherboard power cable length	55 cm mm
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	4
PCI Express power connectors (6+2 pin)	2
SATA power cable length	450,600,750,900 mm mm
80 PLUS certification	80 PLUS
ATX version	2.4
Mean time between failures (MTBF)	100000 h h
Power supply unit (PSU) form factor	ATX
Purpose	PC/Server
Cooling type	Active
Fan diameter	12 cm mm
Number of fans	1 fan(s) fan(s)
On/off switch	Yes
Product colour	Black
Operating temperature (T-T)	0 – 30 °C °C
Cables included	AC
Depth	140 mm mm
Height	86 mm mm
Width	150 mm mm
Package type	Box
Model name	PF600
Units per Pallet	0
Units per Shipping Box	1
Unit Calculated Volume	0.005382 cubm
Unit Calculated Weight	1.89 kg
