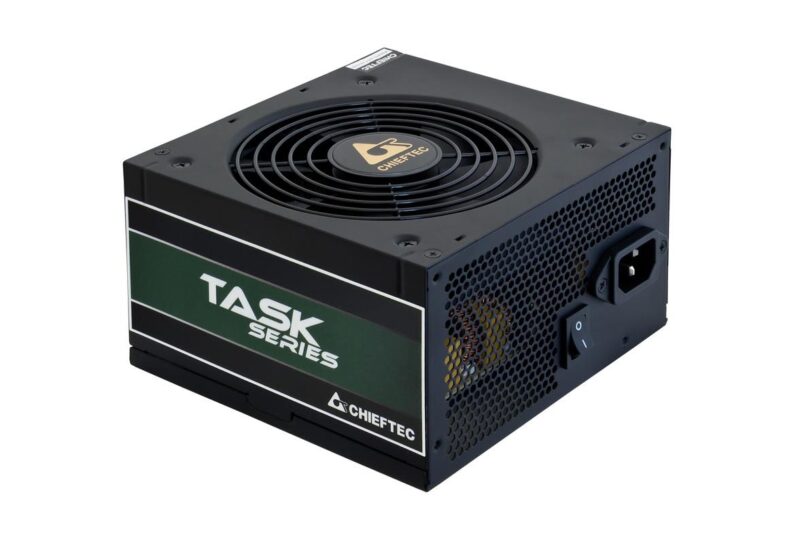

Chieftec Task TPS-700S. Total power: 700 W, AC input voltage: 100 – 240 V, AC input frequency: 47 – 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Fan diameter: 12 cm, Number of fans: 1 fan(s). Compliance certificates: RoHS, Certification: ErP, CE, CB, EAC, TUV

ΑΓΟΡΑ

Σε απόθεμα

Κωδικός προϊόντος: 1339188 Κατηγορία: Desktop Computer PSU Μάρκα: CHIEFTEC

TPS-700S

The CHIEFTEC Task Series PSU’s are true to their name, and take on any task they are required for without any trouble. With certified 80PLUS Bronze efficiency and all modern protection and safety features, the PSU can be trusted to deliver power efficiently and reliably. With cable lengths extended to 650mm for motherboard and CPU, these power supplies will also serve excellently for builds inside larger cases.

80PLUS Bronze certified efficiency
650mm long cables for maximum case compatibility
All modern protection and safety features included

Vendor Homepage	https://www.chieftec.eu/products-detail/180/TASK_SERIES/248/TPS-700S
Category Code	PSU
Unit Box Height	0.185
Unit Box Length	0.235
Unit Box Width	0.105
AC input frequency	47 – 63 Hz Hz
AC input voltage	100 – 240 V V
Combined power (+5Vsb)	12.5 W W
Combined power (-12V)	3.6 W W
Input current	10 A A
Max output current (+3.3V)	19 A A
Max output current (+5V)	17 A A
Max output current (+5Vsb)	2.5 A A
Max output current (-12V)	0.3 A A
Power factor	0.9
Power Factor Correction (PFC) type	Active
Power protection features	Over voltage, Overheating, Overload, Short circuit, Under voltage
Total power	700 W W
ATX power connector (20+4 pin)	Yes
Cabling type	Non-Modular
EPS power connector (4+4 pin)	Yes
Motherboard power cable length	65 cm mm
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	6
PCI Express power cable length	50 cm mm
PCI Express power connectors (6+2 pin)	2
Peripheral (Molex) power cable length	150,500 mm mm
Peripheral (Molex) power connectors (4-pin)	3
SATA power cable length	150,500 mm mm
80 PLUS certification	80 PLUS Bronze
Power supply unit (PSU) form factor	ATX
Purpose	PC
Supported motherboard form factors	ATX
Fan diameter	12 cm mm
Number of fans	1 fan(s) fan(s)
Product colour	Black
Certification	ErP, CE, CB, EAC, TUV
Compliance certificates	RoHS
Depth	140 mm mm
Height	87 mm mm
Weight	1.74 kg g
Width	150 mm mm
Package type	Box
Package weight	2.15 kg g
Harmonized System (HS) code	84733020
EPS cable length	65 cm mm
Units per Pallet	0
Units per Shipping Box	4
Unit Calculated Volume	0.006169 cubm
Unit Calculated Weight	4.31 kg
