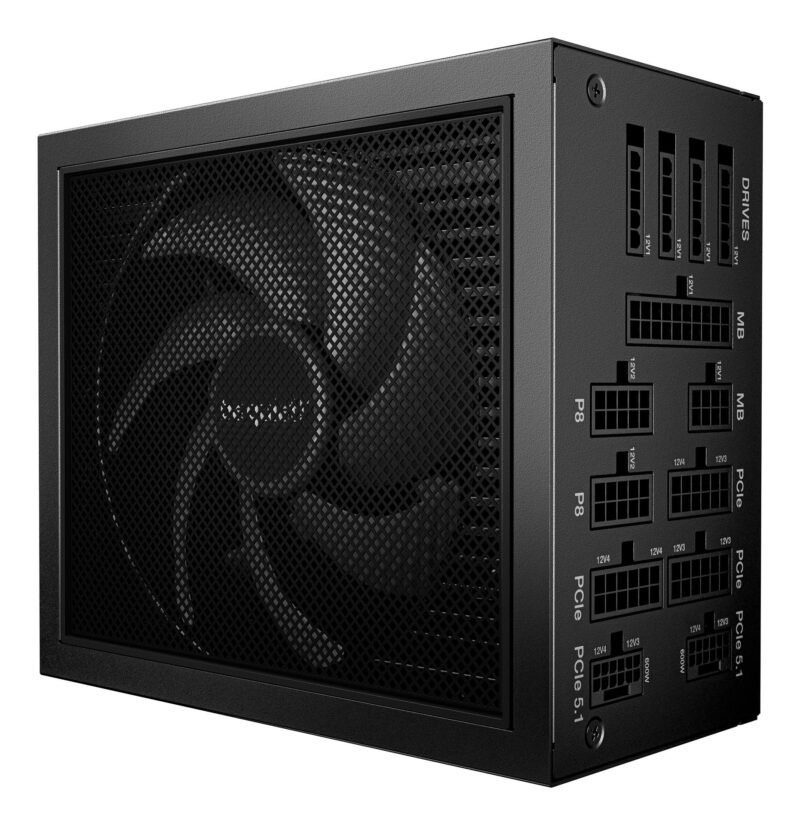

Power Supply|BE QUIET|ATX|PC|100 - 240 V|1200 W|BP021EU

Power Supply|BE QUIET|ATX|PC|100 – 240 V|1200 W|BP021EU

356,88 €

be quiet! Dark Power 14 1200 W – 80 Plus Titanium. Total power: 1200 W, AC input voltage: 100 – 240 V, Peak power: 1300 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 600,750,900,1050 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Titanium. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Compliance certificates: CB, Federal Communications Commission (FCC), RoHS, TÜV mark, UKCA, WEEE, cTUVus

ΑΓΟΡΑ

Σε απόθεμα

Κωδικός προϊόντος: 1450705 Κατηγορία: Μάρκα:

No compromise silence and performance
Dark Power 14 1200W claims nothing less than the top spot. This powerhouse features a high-performance heat sink design with an integrated fan and can be operated in either active or semi-passive mode.

  • 80 PLUS® Titanium and Cybenetics Titanium efficiency (up to 95.42 %)
  • ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2-pin connector
  • Active and semi-passive cooling can be selected with the push of a button
  • Aluminum heat sink to support the semi-passive cooling concept and improve the longevity of the components
  • Silent Wings fan for virtually inaudible operation
  • Full bridge + Synchronous Rectifier + LLC technology provides unmatched signal stability and extremely high efficiency
  • Button to switch between single and multi-rail operation
  • Full-mesh front with funnel-shaped air inlet upholds the high air circulation abilities
  • Modular cable management for maximum convenience
  • Product conception, design and quality control in Germany
Vendor Homepage

https://www.bequiet.com/en/download/products
Category Code

PSU
Unit Box Height

0.127
Unit Box Length

0.354
Unit Box Width

0.232
AC input frequency

50/60 Hz Hz
AC input voltage

100 – 240 V V
Combined power (+12V)

1200 W W
Combined power (+3.3V)

120 W W
Combined power (+5V)

120 W W
Efficiency

93.1% %
Hold time

19.5 ms ms
Max output current (+12V1)

33 A A
Max output current (+12V2)

33 A A
Max output current (+12V3)

45 A A
Max output current (+12V4)

45 A A
Max output current (+3.3V)

25 A A
Max output current (+5V)

24 A A
Max output current (+5Vsb)

3 A A
Max output current (-12V)

0.5 A A
Maximum input current (@110V)

10 A A
Maximum input current (@220V)

5 A A
Number of +12V rail(s)

4
Peak power

1300 W W
Power factor

0.98
Power protection features

Over current, Over voltage, Overheating, Overload, Short circuit, Surge & inrush protection (SIP), Under voltage
Total power

1200 W W
ATX power connector (20+4 pin)

Yes
Cabling type

Fully-Modular
CPU power cable length

70 cm mm
CPU power connector (4+4 pin)

Yes
EPS power connector (4+4 pin)

Yes
EPS power connector (8-pin)

Yes
Motherboard power cable length

60 cm mm
Motherboard power connector

20+4 pin ATX
Number of SATA power cables

4
Number of SATA power connectors

13
PCI Express connector

Yes
PCI Express power cable length

60 cm mm
PCI Express power connectors (12-pin)

2
PCI Express power connectors (6+2 pin)

4
Peripheral (Molex) power cable length

900,1050 mm mm
Peripheral (Molex) power connectors (4-pin)

2
SATA power cable length

600,750,900,1050 mm mm
80 PLUS certification

80 PLUS Titanium
ATX version

3.1
Bearing technology

FDB
EPS version

2.92
Mean time between failures (MTBF)

100000 h h
Noise level

21.1 dB dB
Power supply unit (PSU) form factor

ATX
Purpose

PC
Cooling type

Active
Fan diameter

13.5 cm mm
Fan speed

0 – 2100 RPM RPM
Number of fans

1 fan(s) fan(s)
On/off fan switch

Yes
On/off switch

Yes
Product colour

Black
Operating temperature (T-T)

0 – 40 °C °C
Compliance certificates

CB, Federal Communications Commission (FCC), RoHS, TÜV mark, UKCA, WEEE, cTUVus
Depth

175 mm mm
Height

86 mm mm
Weight

2.3 kg g
Width

150 mm mm
Manual

Yes
Manual languages

Simplified Chinese, German, English, Spanish, French, Italian, Japanese, Polish, Russian, Thai, Ukrainian
Package depth

126 mm mm
Package height

355 mm mm
Package weight

3.7 kg g
Package width

230 mm mm
Sustainability certificates

ENERGY STAR, ErP, Triman
Products per shipping (inner) case

4 pc(s) pc(s)
Shipping (inner) case height

26 cm mm
Shipping (inner) case length

52.8 cm mm
Shipping (inner) case net weight

20.1 kg g
Shipping (inner) case width

36.8 cm mm
Cable ties included

Yes
Screws included

Yes
Units per Pallet

0
Units per Shipping Box

4
Unit Calculated Volume

0.01318 cubm
Unit Calculated Weight

4.99 kg
