SOLD OUT

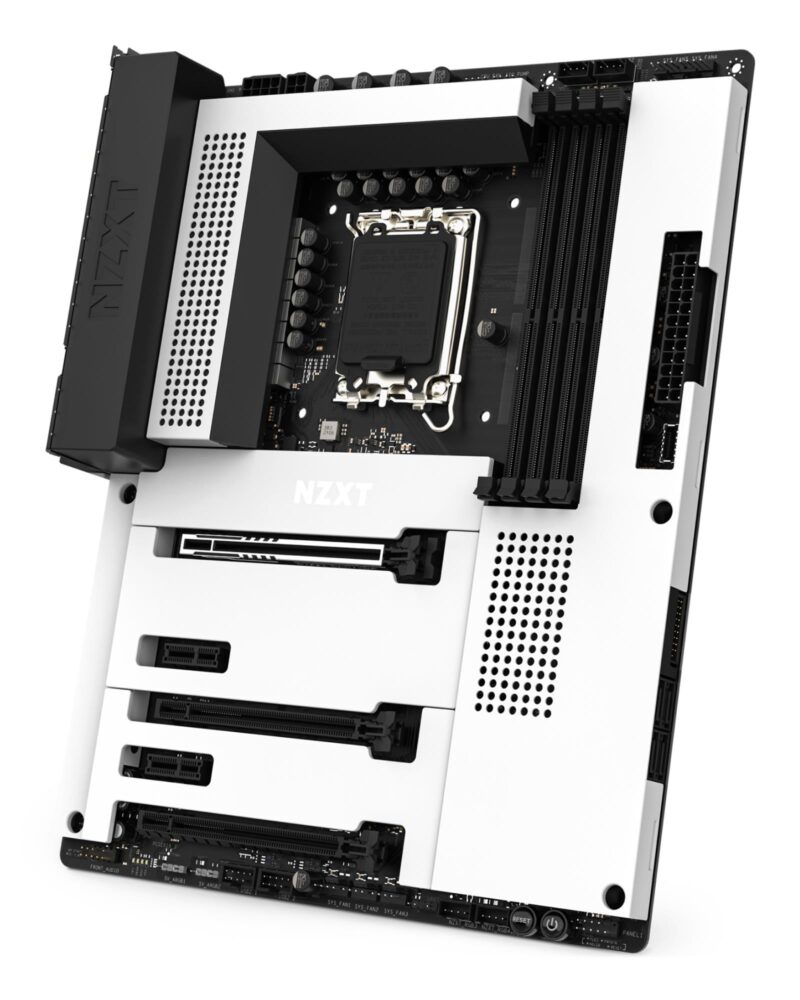

Mainboard|NZXT|Intel Z790|LGA1700|ATX|Memory DDR5|Memory slots 4|2xPCI-Express 3.0 1x|2xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|1xM.2|1xHDMI|2xUSB 2.0|2xUSB 3.2 type B|3xUSB 3.2|1xUSB-C|1xOptical S/PDIF|1xRJ12|5xAudio port|N7-Z79XT-W1

Mainboard|NZXT|Intel Z790|LGA1700|ATX|Memory DDR5|Memory slots 4|2xPCI-Express 3.0 1x|2xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|1xM.2|1xHDMI|2xUSB 2.0|2xUSB 3.2 type B|3xUSB 3.2|1xUSB-C|1xOptical S/PDIF|1xRJ12|5xAudio port|N7-Z79XT-W1

344,34 €

NZXT N7 Z790. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,…. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. USB connector type: USB Type-A, USB Type-C. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Dragon RTL8125BG, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

ΑΓΟΡΑ

Εξαντλημένο

Κωδικός προϊόντος: 1435289 Κατηγορία: Μάρκα:

This motherboard enables a visually seamless backdrop for any build with all the features of the new Intel Z790 chipset.

  • 16+1+2 DrMOS Power Phase Design with 2oz Copper PCB
  • Full cover in black or white with integrated heat spreader for the top-most M.2 slot
  • Numerous presets and custom modes via NZXT CAM software
  • Convenient fan profiles within NZXT CAM for seven independent fan channels
  • Integrated rear I/O shield and efficient layout for optimal setup
  • Compatible with Intel® 13th and 12th Generation Core™ i9, Core™ i7, Core™ i5 processors
  • Designed with Intel® Z790 Express Chipset with Wi-Fi 6E wireless connectivity and Bluetooth V5.2
  • Three M.2 connectors for storage devices
  • Supports memory overclocking speeds of up to 6000 MHz and Intel® XMP 3.0
  • 8-channel high-definition audio
Vendor Homepage

https://nzxt.com/product/n7-z790
Category Code

MBI
Unit Box Height

0.32
Unit Box Length

0.385
Unit Box Width

0.095
Audio chip

Realtek ALC1220
Audio output channels

8 channels channels
Component for

PC
Motherboard chipset

Intel Z790
Motherboard chipset family

Intel
Motherboard form factor

ATX
Windows operating systems supported

Windows 10 x64, Windows 11 x64
Compatible processor series

Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor manufacturer

Intel
Processor socket

LGA 1700
Supported processor sockets

LGA 1700
ECC сompatibility

Non-ECC
Maximum internal memory

128 GB GB
Memory channels

Dual-channel
Memory slots type

DIMM
Number of memory slots

4
Supported memory clock speeds

5000,5066,5100,5133,5200,5300,5333,5400,5600,5800,6000,6200,6400,6600,6666,6800,7000,7200,7400,7600,7800,7900,7950,8000,8333 MHz MHz
Supported memory types

DDR5-SDRAM
Unbuffered memory

Yes
Number of storage drives supported

7
RAID levels

0, 1, 10
RAID support

Yes
Supported storage drive interfaces

M.2, PCI Express 4.0, SATA III
Supported storage drive types

HDD & SSD
HDCP

Yes
Parallel processing technology support

Not supported
12V power connector

Yes
ATX Power connector (24-pin)

Yes
CPU fan connector

Yes
Front panel audio connector

Yes
Number of SATA III connectors

4
RGB LED pin header

Yes
USB 2.0 connectors

2
USB 3.2 Gen 1 (3.1 Gen 1) connectors

1
USB 3.2 Gen 2 (3.1 Gen 2) connectors

1
Digital audio optical out

1
Ethernet LAN (RJ-45) ports

1
HDMI ports quantity

1
HDMI version

2.1
Headphone outputs

5
Microphone in

Yes
S/PDIF out port

Yes
USB 2.0 ports quantity

2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2
USB 3.2 Gen 2x2 Type-C ports quantity

1
USB connector type

USB Type-A, USB Type-C
WiFi-AP antenna jack

2
Bluetooth

Yes
Bluetooth version

5.2
Ethernet interface type

2.5 Gigabit Ethernet
Ethernet LAN

Yes
LAN controller

Dragon RTL8125BG
Top Wi-Fi standard

Wi-Fi 6E (802.11ax)
Wi-Fi

Yes
Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Number of M.2 (M) slots

1
PCI Express x1 (Gen 3.x) slots

2
PCI Express x16 (Gen 4.x) slots

2
PCI Express x16 (Gen 5.x) slots

1
Clear CMOS button

Yes
Cables included

SATA
Model

N7-Z79XT-W1
Units per Shipping Box

1
Unit Calculated Volume

0.0117 cubm
Unit Calculated Weight

2.32 kg
