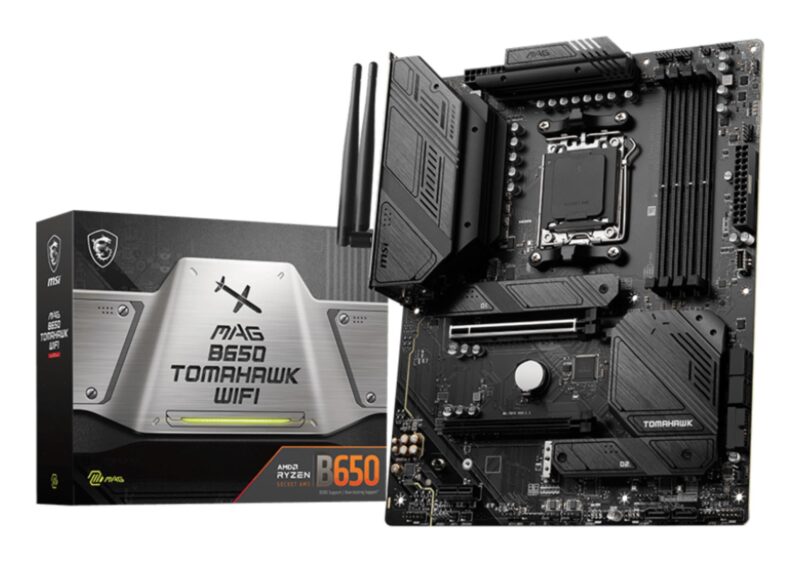

Mainboard|MSI|AMD B650|SAM5|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 1x|2xPCI-Express 16x|3xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|7xUSB 3.2|1xUSB-C|1xOptical S/PDIF|1xRJ45|5xAudio port|MAGB650TOMAHAWKWIFI

Mainboard|MSI|AMD B650|SAM5|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 1x|2xPCI-Express 16x|3xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|7xUSB 3.2|1xUSB-C|1xOptical S/PDIF|1xRJ45|5xAudio port|MAGB650TOMAHAWKWIFI

211,89 €

MSI MAG B650 Tomahawk WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, ECC сompatibility: Non-ECC. Supported storage drive interfaces: M.2, SATA, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125B, Top Wi-Fi standard: Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD

ΑΓΟΡΑ

Εξαντλημένο

Κωδικός προϊόντος: 1383780 Κατηγορία: Μάρκα:

unite as one
The MAG series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.

REINFORCED, HEAVY SOLDERED CONNECTIONS
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.

Vendor Homepage

https://uk.msi.com/Motherboard/MAG-B650-TOMAHAWK-WIFI
Category Code

MBA
Unit Box Height

0.07
Unit Box Length

0.345
Unit Box Width

0.27
Audio chip

Realtek ALC4080
Audio output channels

7.1 channels channels
Component for

PC
Motherboard chipset

AMD B650
Motherboard chipset family

AMD
Motherboard form factor

ATX
PC health monitoring

Fan
Product colour

Black
Windows operating systems supported

Windows 11 x64
Compatible processor series

AMD Ryzen 7000 Series
Processor manufacturer

AMD
Processor socket

Socket AM5
Supported processor sockets

Socket AM5
ECC сompatibility

Non-ECC
Maximum internal memory

128 GB GB
Number of memory slots

4
Supported memory clock speeds

4800,5000,5200,5400,5600,5800,6000,6200,6400,6600 MHz MHz
Supported memory types

DDR5-SDRAM
RAID levels

0, 1, 10
RAID support

Yes
Supported storage drive interfaces

M.2, SATA
ATX Power connector (24-pin)

Yes
Chassis intrusion connector

Yes
CPU fan connector

Yes
Front panel audio connector

Yes
Front panel connector

Yes
Number of SATA III connectors

6
USB 2.0 connectors

4
USB 3.2 Gen 1 (3.1 Gen 1) connectors

2
Ethernet LAN (RJ-45) ports

1
HDMI ports quantity

1
HDMI version

2.1
Headphone outputs

1
Microphone in

Yes
S/PDIF out port

Yes
USB 2.0 ports quantity

2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1
USB 3.2 Gen 2x2 Type-C ports quantity

1
Bluetooth

Yes
Bluetooth version

5.2
Ethernet interface type

2.5 Gigabit Ethernet
Ethernet LAN

Yes
LAN controller

Realtek RTL8125B
Top Wi-Fi standard

Wi-Fi 6E (802.11ax)
Wi-Fi

Yes
Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Number of M.2 (M) slots

3
PCI Express x16 (Gen 3.x) slots

1
Depth

243.8 mm mm
Width

304.8 mm mm
Model

MAG B650 TOMAHAWK WIFI
Units per Shipping Box

1
Unit Calculated Volume

0.006521 cubm
Unit Calculated Weight

1.76 kg
