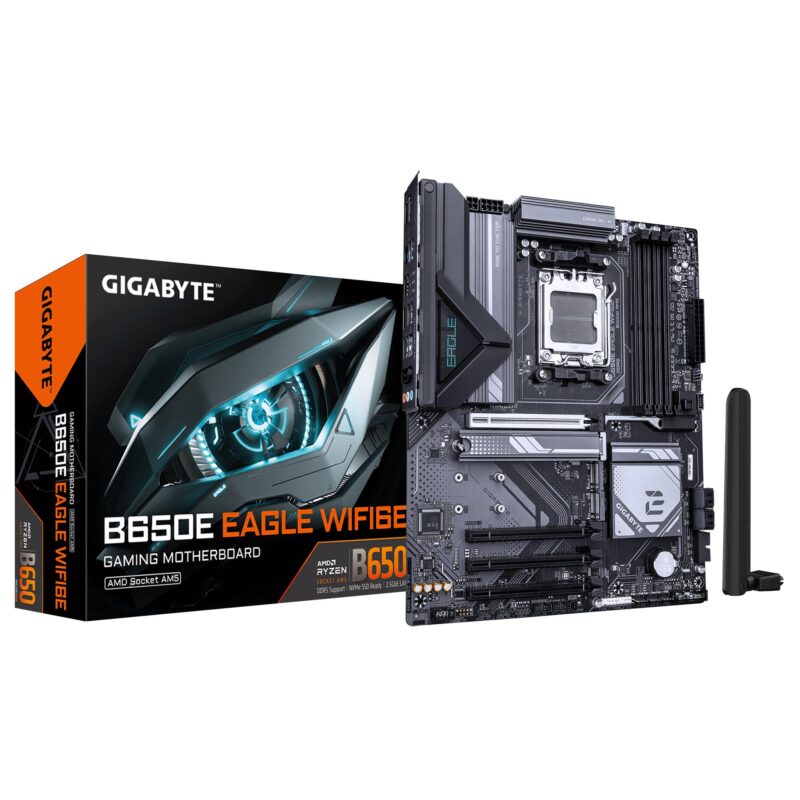

Mainboard|GIGABYTE|SAM5|ATX|Memory DDR5|Memory slots 4|B650EEAGLEWF6E1.0

Mainboard|GIGABYTE|SAM5|ATX|Memory DDR5|Memory slots 4|B650EEAGLEWF6E1.0

178,34 €

GIGABYTE B650E EAGLE WIFI6E Motherboard – AMD Ryzen 9000 Series CPUs, 8+2+2 Phases VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 3.2 Gen 2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

ΑΓΟΡΑ

Σε απόθεμα

Κωδικός προϊόντος: 1451392 Κατηγορία: Μάρκα:

Elevate your computing experience with GIGABYTE’s renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you’re a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.

  • AMD Socket AM5: Supports AMD Ryzen 7000/ Ryzen 8000/ Ryzen 9000 Series Processors
  • Unparalleled Performance: 8+2+2 Phases Digital VRM Solution
  • Dual Channel DDR5: 4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
  • SuperSpeed Storage: 1*PCIe 5.0 + 2*PCIe 4.0 M.2 Connectors
  • Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & 25110 M.2 SSD Performance
  • Fast Networks: Wi-Fi 6E 802.11ax & GbE LAN
  • WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
  • Extended Connectivity: DP, HDMI, Rear USB 10Gb/s
Vendor Homepage

https://www.gigabyte.com/
Category Code

MBA
Unit Box Height

0.08
Unit Box Length

0.27
Unit Box Width

0.34
Audio chip

Realtek ALC897
Audio output channels

7.1 channels channels
Component for

PC
Cooling type

Passive
Motherboard chipset

AMD B650
Motherboard chipset family

AMD
Motherboard form factor

ATX
PC health monitoring

Fan, Temperature, Voltage, Water cooling
Power source type

ATX
Product colour

Dark brown
Windows operating systems supported

Windows 10 x64, Windows 11 x64
Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor manufacturer

AMD
Processor socket

Socket AM5
Supported processor sockets

Socket AM5
ECC сompatibility

Non-ECC
Maximum internal memory

256 GB GB
Maximum internal memory per slot

64 GB GB
Memory channels

Dual-channel
Memory slots type

DIMM
Number of memory slots

4
Supported memory clock speed (max)

8200 MHz MHz
Supported memory clock speeds

8200,8000,7950,7900,7800,7600,7200,6800,6600,6400,6200,6000,5600,5200,4800 MHz MHz
Supported memory types

DDR5-SDRAM
Unbuffered memory

Yes
Number of HDDs supported

4
Number of storage drives supported

7
RAID levels

0, 1, 5, 10
RAID support

Yes
Supported storage drive interfaces

M.2, SATA III
Supported storage drive types

HDD & SSD
DirectX version

12.0
HDCP

Yes
HDCP version

2.3
Maximum resolution

4096 x 2160 pixels pixels
Parallel processing technology support

Not supported
12V power connector

Yes
ATX Power connector (24-pin)

Yes
CPU fan connector

Yes
EPS power connector (8-pin)

Yes
Front panel audio connector

Yes
Front panel connector

Yes
Number of chassis fan connectors

4
Number of CPU fan connectors

2
Number of EPS power connectors (8-pin)

1
Number of RGB LED pin headers

4
Number of SATA III connectors

4
Number of water pump connectors

2
Peripheral (Molex) power connectors (4-pin)

1
RGB LED pin header

Yes
TPM connector

Yes
USB 2.0 connectors

2
USB 3.2 Gen 1 (3.1 Gen 1) connectors

2
DisplayPort version

1.4
Ethernet LAN (RJ-45) ports

1
HDMI ports quantity

1
HDMI version

2.1
Headphone outputs

1
Line-in

Yes
Microphone in

Yes
PS/2 ports quantity

1
USB 2.0 ports quantity

4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2
WiFi-AP antenna jack

2
Bluetooth

Yes
Bluetooth version

5.3
Ethernet interface type

2.5 Gigabit Ethernet
Ethernet LAN

Yes
LAN controller

Realtek RTL8125
Top Wi-Fi standard

Wi-Fi 6E (802.11ax)
Wi-Fi

Yes
Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
WLAN controller model

MediaTek MT7902
1st M.2 highest PCI Express generation

5.0
1st M.2 largest key size

22110
2nd M.2 highest PCI Express generation

4.0
2nd M.2 largest key size

22110
3rd M.2 highest PCI Express generation

4.0
3rd M.2 largest key size

22110
Number of M.2 (M) slots

3
PCI Express x16 (Gen 3.x) slots

2
PCI Express x16 (Gen 4.x) slots

1
PCI Express x16 (Gen 5.x) slots

1
ACPI version

5.0
BIOS memory size

256 Mbit Mbit
BIOS type

UEFI AMI
Clear CMOS jumper

Yes
Desktop Management Interface (DMI) version

2.7
System Management BIOS (SMBIOS) version

2.7
Battery technology

Lithium-Manganese Dioxide (LiMnO2)
Battery type

CR2032
Battery weight

3 g g
Country of origin

China
Lithium weight per battery

0.07 g g
Number of battery cells

1
Package depth

270 mm mm
Package height

80 mm mm
Package weight

1.89 kg g
Package width

335 mm mm
Products per shipping (inner) case

1 pc(s) pc(s)
Depth

244 mm mm
Height

35 mm mm
Width

305 mm mm
Antenna included

Yes
Batteries included

Yes
Bundled software

Norton® Internet Security (OEM version)
Screws included

Yes
Warranty period

3 year(s) year(s)
Weight

1.68 kg g
Model

B650E EAGLE WIFI6E
Units per Pallet

0
Units per Shipping Box

1
Unit Calculated Volume

0.007344 cubm
Unit Calculated Weight

1.66 kg
