SOLD OUT

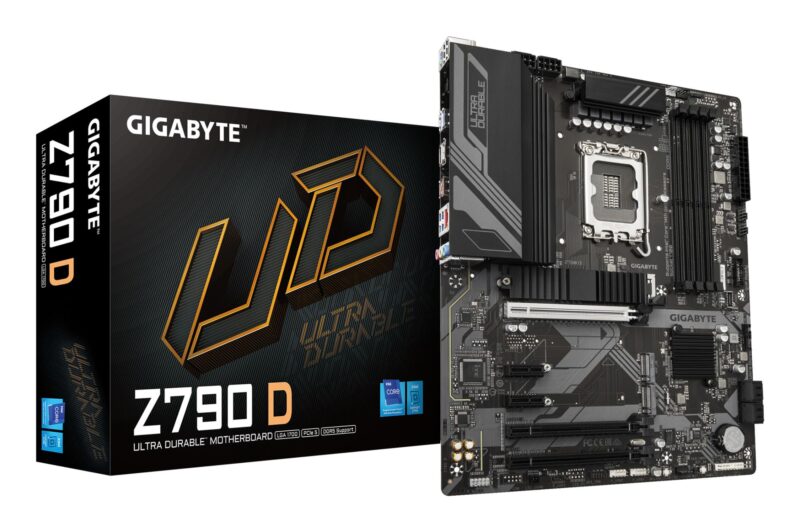

Mainboard|GIGABYTE|Intel Z790|LGA1700|ATX|Memory DDR5|Memory slots 4|Z790D1.2

Mainboard|GIGABYTE|Intel Z790|LGA1700|ATX|Memory DDR5|Memory slots 4|Z790D1.2

186,57 €

GIGABYTE Z790 D Motherboard – Supports Intel Core 14th Gen CPUs, 12+1+１ Phases Digital VRM, up to 7600MHz DDR5 (OC), 3xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,…. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. USB connector type: USB Type-A, USB Type-C

ΑΓΟΡΑ

Εξαντλημένο

Κωδικός προϊόντος: 1450931 Κατηγορία: Μάρκα:

Elevate your computing experience with GIGABYTE’s renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you’re a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

  • Supports Intel Core 14th/ 13th /12th processors
  • Unparalleled Performance：Twin 12*+1+１ Phases Digital VRM Solution
  • Dual Channel DDR5：4*DIMMs with XMP 3.0 Memory Module Support
  • Next Generation Storage：3*PCIe 4.0 x4 M.2 Connectors
  • Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
  • EZ-Latch：PCIe 4.0×16 Slot with Quick Release Design
  • Fast Networks：2.5GbE LAN
  • Extended Connectivity：DP, HDMI, Rear USB-C 10Gb/s
  • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
Vendor Homepage

https://www.gigabyte.com
Category Code

MBI
Unit Box Height

0.081
Unit Box Length

0.338
Unit Box Width

0.27
Audio chip

Realtek ALC897
Audio output channels

7.1 channels channels
Component for

PC
Motherboard chipset

Intel Z790 Express
Motherboard chipset family

Intel
Motherboard form factor

ATX
PC health monitoring

Fan, Temperature, Voltage, Water cooling
Power source type

ATX
Product colour

Brown
Windows operating systems supported

Windows 10 x64, Windows 11 x64
Compatible processor series

Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Maximum internal memory supported by processor

192 GB GB
Maximum number of SMP processors

1
Processor manufacturer

Intel
Processor socket

LGA 1700
Supported processor sockets

LGA 1700
ECC сompatibility

ECC & Non-ECC
Maximum internal memory

192 GB GB
Memory channels

Dual-channel
Memory slots type

DIMM
Number of memory slots

4
Supported memory clock speed (max)

7600 MHz MHz
Supported memory clock speeds

4400,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600 MHz MHz
Supported memory module capacities

1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
Supported memory types

DDR5-SDRAM
Unbuffered memory

Yes
Number of HDDs supported

4
Number of storage drives supported

7
RAID levels

0, 1, 5, 10
RAID support

Yes
Supported storage drive interfaces

M.2, PCI Express 4.0, SATA III
Supported storage drive types

HDD & SSD
DirectX version

12.0
Discrete graphics support

Yes
HDCP

Yes
Maximum resolution

4096 x 2304 pixels pixels
Parallel processing technology support

Not supported
12V power connector

Yes
ATX Power connector (24-pin)

Yes
CPU fan connector

Yes
EPS power connector (8-pin)

Yes
Front panel audio connector

Yes
Front panel connector

Yes
Number of EATX power connectors

2
Number of SATA III connectors

4
RGB LED pin header

Yes
Thunderbolt headers

2
Total number of SATA connectors

4
TPM connector

Yes
USB 2.0 connectors

2
USB 3.2 Gen 1 (3.1 Gen 1) connectors

1
USB 3.2 Gen 2 (3.1 Gen 2) connectors

1
DisplayPort version

1.2
DisplayPorts quantity

1
Ethernet LAN (RJ-45) ports

1
HDMI ports quantity

1
HDMI version

2.1
Headphone outputs

1
Microphone in

Yes
S/PDIF out port

Yes
USB 2.0 ports quantity

2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1
USB 3.2 Gen 2x2 Type-C ports quantity

1
USB connector type

USB Type-A, USB Type-C
WiFi-AP antenna jack

2
Ethernet interface type

2.5 Gigabit Ethernet
Ethernet LAN

Yes
Wi-Fi

No
Number of M.2 (M) slots

3
PCI Express x1 (Gen 3.x) slots

2
PCI Express x16 (Gen 3.x) slots

1
PCI Express x16 (Gen 4.x) slots

1
PCI Express x16 (Gen 5.x) slots

1
ACPI version

5.0
BIOS memory size

256 Mbit Mbit
BIOS type

UEFI AMI
Clear CMOS button

Yes
Clear CMOS jumper

Yes
Desktop Management Interface (DMI) version

2.7
System Management BIOS (SMBIOS) version

2.7
Battery technology

Lithium-Manganese Dioxide (LiMnO2)
Battery type

CR2032
Battery weight

3 g g
Country of origin

China
Lithium weight per battery

0.07 g g
Number of battery cells

1
Package depth

270 mm mm
Package height

80 mm mm
Package weight

1.8 kg g
Package width

335 mm mm
Products per shipping (inner) case

1 pc(s) pc(s)
Depth

244 mm mm
Height

35 mm mm
Width

305 mm mm
Antenna included

Yes
Batteries included

Yes
Bundled software

Norton® Internet Security (OEM version)
LAN bandwidth management software
Cables included

SATA
Warranty period

3 year(s) year(s)
Model

Z790 D (rev. 1.2)
Units per Pallet

0
Units per Shipping Box

8
Unit Calculated Volume

0.01002 cubm
Unit Calculated Weight

1.81 kg
