Mainboard|GIGABYTE|Intel H610|LGA1700|Micro-ATX|Memory DDR4|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xM.2|1x15pin D-sub|1xHDMI|4xUSB 2.0|2xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|H610MHV3DDR4

Mainboard|GIGABYTE|Intel H610|LGA1700|Micro-ATX|Memory DDR4|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xM.2|1x15pin D-sub|1xHDMI|4xUSB 2.0|2xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|H610MHV3DDR4

70,71 €

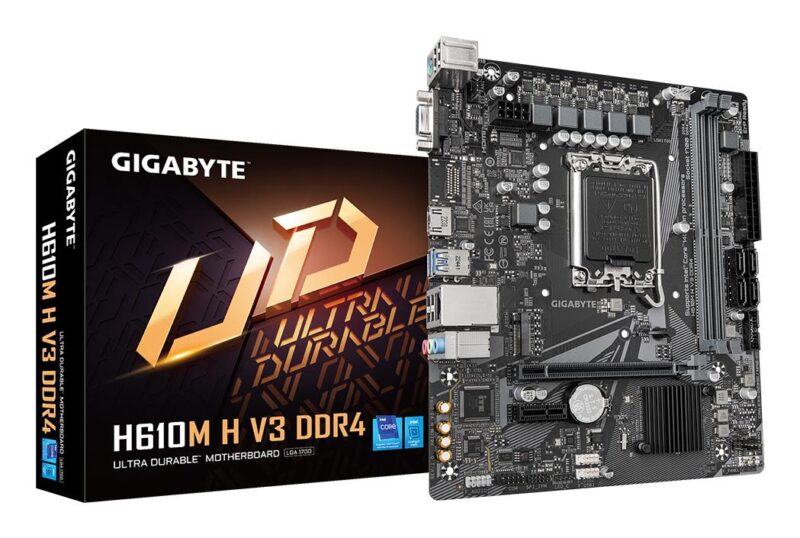

GIGABYTE H610M H V3 DDR4 Motherboard – Supports Intel Core 14th CPUs, 4+1+1 Hybrid Phases Digital VRM, up to 3200MHz DDR4, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,…. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Graphics card family: Intel, Graphics card: HD Graphics, Maximum resolution: 4096 x 2304 pixels. USB connector type: USB Type-A

ΑΓΟΡΑ

Σε απόθεμα

Κωδικός προϊόντος: 1426844 Κατηγορία: Μάρκα:

Elevate your computing experience with GIGABYTE’s renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you’re a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

  • Supports Intel Core 14th/ 13th /12th processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • 4+1+1 Hybrid Digital VRM Design
  • GbE LAN with Bandwidth Management
  • NVMe PCIe 3.0 x4 M.2
  • High Quality Audio Capacitors and Audio Noise Guard
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • GIGABYTE APP Center, Simple and Easy Use
  • Anti-Sulfur Resistors Design
Vendor Homepage

https://www.gigabyte.com/
Category Code

MBI
Unit Box Height

0.055
Unit Box Length

0.265
Unit Box Width

0.235
Audio chip

Realtek ALC897
Audio output channels

7.1 channels channels
Component for

PC
Cooling type

Active
Motherboard chipset

Intel H610 Express
Motherboard chipset family

Intel
Motherboard form factor

micro ATX
PC health monitoring

Fan, Temperature, Voltage, Water cooling
Power source type

ATX
Product colour

Black
Windows operating systems supported

Windows 10 x64, Windows 11 x64
Compatible processor series

Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor manufacturer

Intel
Processor socket

LGA 1700
Supported processor sockets

LGA 1700
ECC сompatibility

ECC & Non-ECC
Maximum internal memory

64 GB GB
Memory channels

Dual-channel
Memory slots type

DIMM
Number of memory slots

2
Supported memory clock speed (max)

3200 MHz MHz
Supported memory clock speeds

3200, 3000, 2933, 2666, 2400, 2133 MHz MHz
Supported memory module capacities

1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Supported memory types

DDR4-SDRAM
Unbuffered memory

Yes
Number of HDDs supported

1
Number of storage drives supported

5
Supported storage drive interfaces

M.2, SATA III
Supported storage drive types

HDD & SSD
Graphics card

HD Graphics
Graphics card family

Intel
HDCP

Yes
Maximum resolution

4096 x 2304 pixels pixels
Parallel processing technology support

Not supported
12V power connector

Yes
ATX Power connector (24-pin)

Yes
CPU fan connector

Yes
EPS power connector (8-pin)

Yes
Front panel audio connector

Yes
Front panel connector

Yes
Number of SATA III connectors

4
RGB LED pin header

Yes
Serial port headers

1
TPM connector

Yes
USB 2.0 connectors

2
USB 3.2 Gen 1 (3.1 Gen 1) connectors

1
DisplayPorts quantity

2
DVI-D ports quantity

1
Ethernet LAN (RJ-45) ports

1
HDMI ports quantity

1
Headphone outputs

3
Microphone in

Yes
PS/2 ports quantity

1
USB 2.0 ports quantity

4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2
USB connector type

USB Type-A
VGA (D-Sub) ports quantity

1
Ethernet interface type

Gigabit Ethernet
Ethernet LAN

Yes
Wi-Fi

No
Number of M.2 (M) slots

1
PCI Express x1 slots

1
PCI Express x16 slots

1
ACPI version

5.0
BIOS memory size

128 Mbit Mbit
BIOS type

UEFI AMI
Clear CMOS button

Yes
Clear CMOS jumper

Yes
Desktop Management Interface (DMI) version

2.7
System Management BIOS (SMBIOS) version

2.7
Battery technology

Lithium-Manganese Dioxide (LiMnO2)
Battery type

CR2032
Battery weight

3 g g
Country of origin

China
Lithium weight per battery

0.07 g g
Number of battery cells

1
Package depth

235 mm mm
Package height

52 mm mm
Package weight

684 g g
Package width

265 mm mm
Products per shipping (inner) case

1 pc(s) pc(s)
Depth

215 mm mm
Height

35 mm mm
Width

230 mm mm
Batteries included

Yes
Bundled software

Norton Internet Security (OEM version)
LAN bandwidth management software
Cables included

SATA
Warranty period

3 year(s) year(s)
Model

H610M H V3 DDR4
Units per Shipping Box

10
Unit Calculated Volume

0.004113 cubm
Unit Calculated Weight

0.753 kg
