SOLD OUT
Mainboard|GIGABYTE|Intel B860 Express|LGA1851|Micro-ATX|Memory DDR5|Memory slots 4|2xPCI-Express 16x|3xM.2|1xHDMI|1xDisplayPort|1xAudio-In|1xAudio-Out|4xUSB 2.0|6xUSB 3.2|1xUSB-C|1xOptical S/PDIF|1xRJ45|B860MAELITEWIFI6E1.0

Mainboard|GIGABYTE|Intel B860 Express|LGA1851|Micro-ATX|Memory DDR5|Memory slots 4|2xPCI-Express 16x|3xM.2|1xHDMI|1xDisplayPort|1xAudio-In|1xAudio-Out|4xUSB 2.0|6xUSB 3.2|1xUSB-C|1xOptical S/PDIF|1xRJ45|B860MAELITEWIFI6E1.0

241,09 €

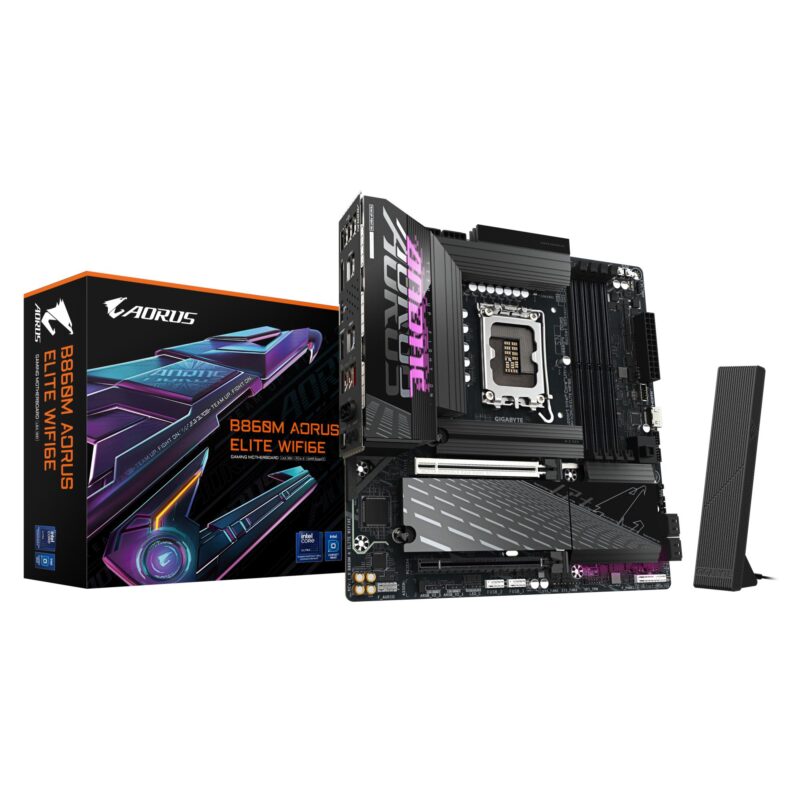

GIGABYTE B860M AORUS ELITE WIFI6E Motherboard – Intel Core Ultra Series CPUs, 12+1+2+1 Phases VRM, up to 9200MHz DDR5, 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, Thunderbolt. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

ΑΓΟΡΑ

Εξαντλημένο

Κωδικός προϊόντος: 1432817 Κατηγορία: Μάρκα:

Elevate your computing experience with GIGABYTE’s renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you’re a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

  • Twin Hybrid Digital 12+1+2+1 Phases 60A DrMOS VRM
  • Dual Channel DDR5：4*DIMMs
  • PCIe 5.0 x16 with PCIE UD Slot & EZ-Latch Plus
  • EZ-Latch Plus for M.2 SSDs installation
  • Fully Covered MOSFET Heatsinks/M.2 Thermal Guard(Ext.) with EZ-Latch Click
  • Realtek 2×2 Wi-Fi 6E with WIFI EZ-Plug
  • 2.5GbE LAN, USB 4.0 Type-C, USB 3.2 Gen2 Type-C
  • Q-Flash Plus
Vendor Homepage

https://www.gigabyte.com/
Category Code

MBI
Unit Box Height

0.07
Unit Box Length

0.275
Unit Box Width

0.27
Audio chip

Realtek ALC897
Audio output channels

7.1 channels channels
Component for

PC
Cooling type

Passive
Motherboard chipset

Intel B860
Motherboard chipset family

Intel
Motherboard form factor

micro ATX
PC health monitoring

Fan, Temperature, Voltage, Water cooling
Power source type

ATX
Product colour

Black
Windows operating systems supported

Windows 11 x64
Compatible processor series

Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2)
Processor manufacturer

Intel
Processor socket

LGA 1851 (Socket V1)
Supported processor sockets

LGA 1851
ECC сompatibility

ECC & Non-ECC
Maximum internal memory

256 GB GB
Maximum internal memory per slot

64 GB GB
Memory channels

Dual-channel
Memory slots type

DIMM
Number of memory slots

4
Supported memory clock speed (max)

9200 MHz MHz
Supported memory clock speeds

5600,6400,9200 MHz MHz
Supported memory types

DDR5-SDRAM
Unbuffered memory

Yes
Number of HDDs supported

4
Number of storage drives supported

7
RAID levels

0, 1, 5, 10
RAID support

Yes
Supported storage drive interfaces

M.2, SATA III
Supported storage drive types

HDD & SSD
DirectX version

12.0
HDCP

Yes
Maximum resolution

4096 x 2160 pixels pixels
On-board graphics card

No
Parallel processing technology support

Not supported
ATX Power connector (24-pin)

Yes
CPU fan connector

Yes
EPS power connector (8-pin)

Yes
Front panel audio connector

Yes
Front panel connector

Yes
Number of chassis fan connectors

4
Number of CPU fan connectors

2
Number of EPS power connectors (8-pin)

2
Number of RGB LED pin headers

4
Number of SATA III connectors

4
Number of water pump connectors

2
RGB LED pin header

Yes
Thunderbolt headers

2
TPM connector

Yes
USB 2.0 connectors

2
USB 3.2 Gen 1 (3.1 Gen 1) connectors

1
USB 3.2 Gen 2 (3.1 Gen 2) connectors

1
Digital audio optical out

1
DisplayPort version

2.1
DisplayPorts quantity

1
Ethernet LAN (RJ-45) ports

1
HDMI ports quantity

1
HDMI version

2.1
Headphone outputs

1
Line-in

Yes
S/PDIF out port

Yes
USB 2.0 ports quantity

4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2
USB4 Gen 2x2 ports quantity

1
WiFi-AP antenna jack

2
Bluetooth

Yes
Bluetooth version

5.3
Ethernet interface type

2.5 Gigabit Ethernet
Ethernet LAN

Yes
LAN controller

Realtek RTL8125
Top Wi-Fi standard

Wi-Fi 6E (802.11ax)
Wi-Fi

Yes
Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
WLAN controller model

Intel Wi-Fi 6E AX211
1st M.2 highest PCI Express generation

5.0
1st M.2 largest key size

2280
2nd M.2 highest PCI Express generation

4.0
2nd M.2 largest key size

2580
3rd M.2 highest PCI Express generation

4.0
3rd M.2 largest key size

25110
Number of M.2 (M) slots

3
PCI Express x16 (Gen 4.x) slots

1
PCI Express x16 (Gen 5.x) slots

1
ACPI version

5.0
BIOS memory size

256 Mbit Mbit
BIOS type

UEFI AMI
Clear CMOS jumper

Yes
Desktop Management Interface (DMI) version

2.7
System Management BIOS (SMBIOS) version

2.7
Battery technology

Lithium-Manganese Dioxide (LiMnO2)
Battery type

CR2032
Battery weight

3 g g
Country of origin

China
Lithium weight per battery

0.07 g g
Number of battery cells

1
Package depth

268 mm mm
Package height

68 mm mm
Package weight

1.89 kg g
Package width

270 mm mm
Products per shipping (inner) case

1 pc(s) pc(s)
Depth

244 mm mm
Height

35 mm mm
Width

244 mm mm
Antenna included

Yes
Batteries included

Yes
Bundled software

Norton Internet Security (OEM version)
LAN bandwidth management software
Screws included

Yes
Warranty period

3 year(s) year(s)
Weight

1.69 kg g
Model

B860M AORUS ELITE WIFI6E
Units per Shipping Box

8
Unit Calculated Volume

0.007422 cubm
Unit Calculated Weight

1.89 kg
