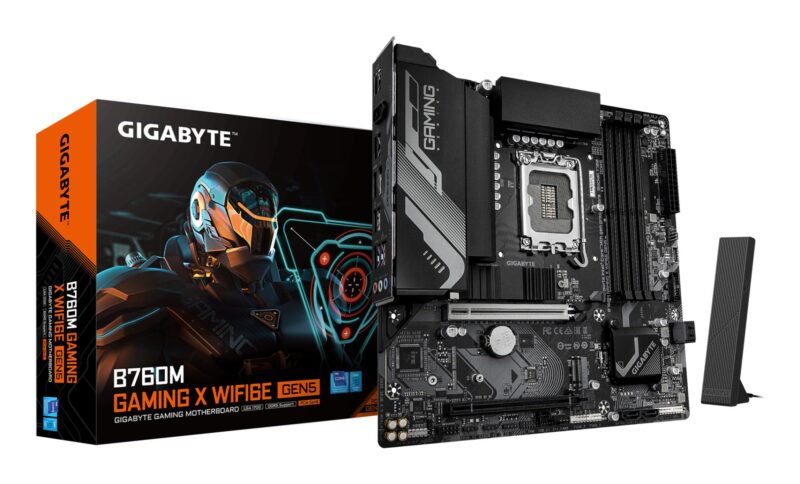

Mainboard|GIGABYTE|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR5|Memory slots 4|B760MGXWF6EGEN5

Mainboard|GIGABYTE|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR5|Memory slots 4|B760MGXWF6EGEN5

172,80 €

GIGABYTE B760M GAMING X WIFI6E GEN5 Motherboard – Supports 14th Gen. Intel Core CPUs, 8+1+1 phases VRM, up to 5600MHz DDR5, 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5 GbE LAN, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel…. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

ΑΓΟΡΑ

Εξαντλημένο

Κωδικός προϊόντος: 1447970 Κατηγορία: Μάρκα:

Elevate your computing experience with GIGABYTE’s renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you’re a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.

  • PCIe Gen5 Performance: Perfect Sync to Win
  • Supports Intel Core 14th/ 13th/12 processors
  • Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
  • WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
  • WIFI Compass: Auto detects the best antenna position for strongest Wi-Fi signal
  • EZ-Latch: PCIe 5.0×16 Slot with Quick Release Design
  • Unparalleled Performance: Hybrid 8+1+1 Phases VRM Solution
  • Dual Channel DDR5: 4*DIMMs with XMP Memory Module Support
  • Fast Networks: 2.5GbE LAN & Wi-Fi 6E 802.11ax
  • Next Generation Storage: 2*PCIe 4.0 x4 M.2 Connectors
Vendor Homepage

https://www.gigabyte.com/
Category Code

MBI
Unit Box Height

0.07
Unit Box Length

0.274
Unit Box Width

0.267
Audio chip

Realtek ALC897
Audio output channels

7.1 channels channels
Component for

PC
Cooling type

Passive
Motherboard chipset

Intel B760
Motherboard chipset family

Intel
Motherboard form factor

micro ATX
PC health monitoring

Fan, Temperature, Voltage, Water cooling
Power source type

ATX
Product colour

Dark brown
Windows operating systems supported

Windows 10 x64, Windows 11 x64
Compatible processor series

Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen
Processor manufacturer

Intel
Processor socket

LGA 1700
Supported processor sockets

LGA 1700
ECC сompatibility

ECC & Non-ECC
Maximum internal memory

256 GB GB
Maximum internal memory per slot

64 GB GB
Memory channels

Dual-channel
Memory slots type

DIMM
Number of memory slots

4
Supported memory clock speed (max)

5600 MHz MHz
Supported memory clock speeds

5600,5200,4800,4400 MHz MHz
Supported memory types

DDR5-SDRAM
Unbuffered memory

Yes
Number of HDDs supported

4
Number of storage drives supported

6
RAID levels

0, 1, 5, 10
RAID support

Yes
Supported storage drive interfaces

M.2, PCI Express 4.0, SATA III
Supported storage drive types

HDD & SSD
DirectX version

12.0
HDCP

Yes
Maximum resolution

4096 x 2304 pixels pixels
Parallel processing technology support

Not supported
12V power connector

Yes
ATX Power connector (24-pin)

Yes
CPU fan connector

Yes
EPS power connector (8-pin)

Yes
Front panel audio connector

Yes
Front panel connector

Yes
Number of chassis fan connectors

3
Number of CPU fan connectors

1
Number of EPS power connectors (8-pin)

1
Number of RGB LED pin headers

4
Number of SATA III connectors

4
RGB LED pin header

Yes
S/PDIF out connector

Yes
Serial port headers

1
Thunderbolt headers

2
TPM connector

Yes
USB 2.0 connectors

2
USB 3.2 Gen 1 (3.1 Gen 1) connectors

1
USB 3.2 Gen 2 (3.1 Gen 2) connectors

1
DisplayPort version

1.2
DisplayPorts quantity

1
Ethernet LAN (RJ-45) ports

1
HDMI ports quantity

1
HDMI version

2.1
Headphone outputs

1
Line-in

Yes
Microphone in

Yes
USB 2.0 ports quantity

5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3
WiFi-AP antenna jack

2
Bluetooth

Yes
Bluetooth version

5.3
Ethernet interface type

2.5 Gigabit Ethernet
Ethernet LAN

Yes
LAN controller

Realtek RTL8125
Top Wi-Fi standard

Wi-Fi 6E (802.11ax)
Wi-Fi

Yes
Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
WLAN controller model

Intel Wi-Fi 6E AX210
1st M.2 highest PCI Express generation

4.0
1st M.2 largest key size

2280
2nd M.2 highest PCI Express generation

4.0
2nd M.2 largest key size

22110
Number of M.2 (M) slots

2
PCI Express x16 (Gen 3.x) slots

1
PCI Express x16 (Gen 5.x) slots

1
ACPI version

5.0
BIOS memory size

256 Mbit Mbit
BIOS type

UEFI AMI
Clear CMOS jumper

Yes
Desktop Management Interface (DMI) version

2.7
System Management BIOS (SMBIOS) version

2.7
Battery technology

Lithium-Manganese Dioxide (LiMnO2)
Battery type

CR2032
Battery weight

3 g g
Country of origin

China
Lithium weight per battery

0.07 g g
Number of battery cells

1
Package depth

268 mm mm
Package height

68 mm mm
Package weight

1.6 kg g
Package width

270 mm mm
Products per shipping (inner) case

1 pc(s) pc(s)
Depth

244 mm mm
Height

35 mm mm
Width

244 mm mm
Antenna included

Yes
Batteries included

Yes
Bundled software

Norton® Internet Security (OEM version)
LAN bandwidth management software
Screws included

Yes
Warranty period

3 year(s) year(s)
Weight

1.42 kg g
Model

B760M G X WF6E GEN5
Units per Pallet

0
Units per Shipping Box

8
Unit Calculated Volume

0.00742 cubm
Unit Calculated Weight

1.63 kg
