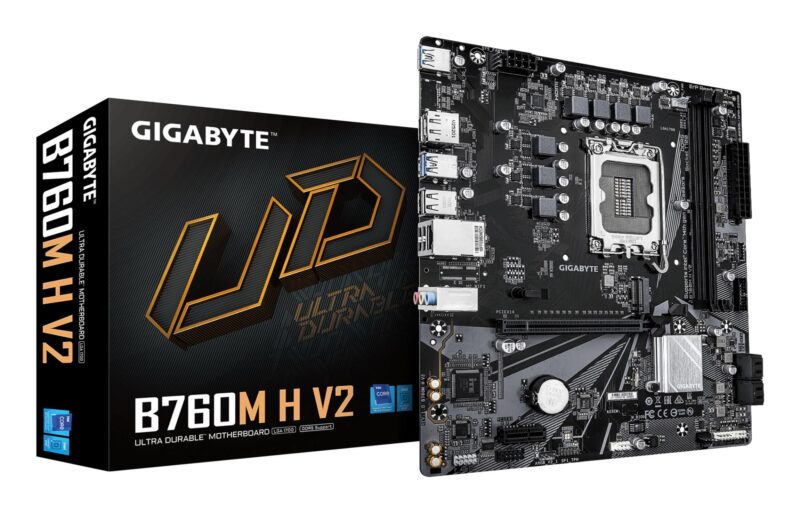

Mainboard|GIGABYTE|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR5|Memory slots 2|B760MHV21.0

Mainboard|GIGABYTE|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR5|Memory slots 2|B760MHV21.0

104,40 €

GIGABYTE B760M H V2 Motherboard – Supports Intel Core 14th Gen CPUs, 5+1+1 Phases Digital VRM, up to 8000MHz DDR5 (O.C.), 1xPCIe 4.0 M.2, 1GbE LAN, USB 3.2 Gen1. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel…. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H

ΑΓΟΡΑ

Εξαντλημένο

Κωδικός προϊόντος: 1451396 Κατηγορία: Μάρκα:

Elevate your computing experience with GIGABYTE’s renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you’re a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.

  • Supports Intel Core 14th/ 13th /12th processors
  • Unparalleled Performance: Hybrid 5+1+1 Phases VRM Solution
  • Dual Channel DDR5: 2*DIMMs XMP Memory Module Support
  • Next Generation Storage: PCIe 4.0 M.2 Connectors
  • Fast Networks: GbE LAN
  • EZ-Latch: PCIe x16 Slot with Quick Release Design
  • Extended Connectivity: DP, HDMI
  • Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Vendor Homepage

https://www.gigabyte.com/
Category Code

MBI
Unit Box Height

0.26
Unit Box Length

0.265
Unit Box Width

0.055
Audio chip

Realtek ALC897
Audio output channels

7.1 channels channels
Component for

PC
Cooling type

Passive
Motherboard chipset

Intel B760 Express
Motherboard chipset family

Intel
Motherboard form factor

micro ATX
PC health monitoring

Fan, Temperature, Voltage, Water cooling
Power source type

ATX
Product colour

Dark brown
Windows operating systems supported

Windows 10 x64, Windows 11 x64
Compatible processor series

Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen
Processor manufacturer

Intel
Processor socket

LGA 1700
Supported processor sockets

LGA 1700
ECC сompatibility

ECC & Non-ECC
Maximum internal memory

128 GB GB
Maximum internal memory per slot

64 GB GB
Memory channels

Dual-channel
Memory slots type

DIMM
Number of memory slots

2
Supported memory clock speed (max)

8000 MHz MHz
Supported memory clock speeds

8000,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,4800,4000 MHz MHz
Supported memory types

DDR5-SDRAM
Unbuffered memory

Yes
Number of HDDs supported

4
Number of storage drives supported

5
RAID levels

0, 1, 5, 10
RAID support

Yes
Supported storage drive interfaces

M.2, PCI Express 4.0, SATA III
Supported storage drive types

HDD & SSD
DirectX version

12.0
HDCP

Yes
HDCP version

2.3
Maximum resolution

4096 x 2304 pixels pixels
Parallel processing technology support

Not supported
12V power connector

Yes
ATX Power connector (24-pin)

Yes
CPU fan connector

Yes
EPS power connector (8-pin)

Yes
Front panel audio connector

Yes
Front panel connector

Yes
Number of chassis fan connectors

2
Number of CPU fan connectors

1
Number of EPS power connectors (8-pin)

1
Number of RGB LED pin headers

2
Number of SATA III connectors

4
RGB LED pin header

Yes
Serial port headers

1
TPM connector

Yes
USB 2.0 connectors

1
USB 3.2 Gen 1 (3.1 Gen 1) connectors

2
DisplayPort version

1.2
DisplayPorts quantity

1
Ethernet LAN (RJ-45) ports

1
HDMI ports quantity

1
HDMI version

2.1
Headphone outputs

1
Line-in

Yes
Microphone in

Yes
USB 2.0 ports quantity

4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3
Ethernet interface type

Gigabit Ethernet
Ethernet LAN

Yes
LAN controller

Realtek RTL8111H
Wi-Fi

No
1st M.2 highest PCI Express generation

4.0
1st M.2 largest key size

2280
Number of M.2 (M) slots

1
PCI Express x1 (Gen 3.x) slots

1
PCI Express x16 (Gen 4.x) slots

1
ACPI version

5.0
BIOS memory size

128 Mbit Mbit
BIOS type

UEFI AMI
Clear CMOS jumper

Yes
Desktop Management Interface (DMI) version

2.7
System Management BIOS (SMBIOS) version

2.7
Battery capacity

220 mAh mAh
Battery technology

Lithium-Manganese Dioxide (LiMnO2)
Battery type

CR2032
Battery weight

3 g g
Country of origin

China
Lithium weight per battery

0.07 g g
Number of battery cells

1
Package depth

265 mm mm
Package height

54 mm mm
Package weight

850 g g
Package width

265 mm mm
Products per shipping (inner) case

1 pc(s) pc(s)
Depth

220 mm mm
Height

35 mm mm
Width

244 mm mm
Batteries included

Yes
Bundled software

Norton® Internet Security (OEM version)
Screws included

Yes
Warranty period

3 year(s) year(s)
Weight

770 g g
Model

B760M H V2
Units per Pallet

0
Units per Shipping Box

10
Unit Calculated Volume

0.004669 cubm
Unit Calculated Weight

0.85 kg
