Mainboard|GIGABYTE|AMD X870E|Socket AM5|ATX|RAM DDR5-SDRAM|4xSlots|Wi-Fi Yes|Bluetooth Yes|4xNumber of M.2 (M) slots|X870E A PRO X ICE|X870EAPROXICE

Mainboard|GIGABYTE|AMD X870E|Socket AM5|ATX|RAM DDR5-SDRAM|4xSlots|Wi-Fi Yes|Bluetooth Yes|4xNumber of M.2 (M) slots|X870E A PRO X ICE|X870EAPROXICE

451,68 €

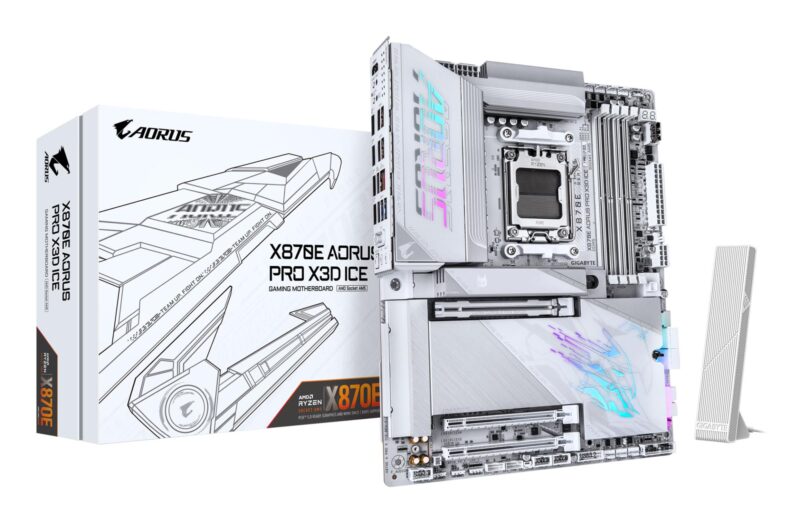

GIGABYTE X870E AORUS PRO X3D ICE Motherboard – Supports AMD Ryzen 9000 CPUs, 18+2+2 Phases Digital VRM, up to 9000Hz DDR5 (OC), 2xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 5GbE LAN, USB 4. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, LAN controller: Realtek RTL8126, Top Wi-Fi standard: Wi-Fi 7 (802.11be)

ΑΓΟΡΑ

Σε απόθεμα

Κωδικός προϊόντος: 1449517 Κατηγορία: Μάρκα:

Elevate your computing experience with GIGABYTE’s renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you’re a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.

  • X3D Turbo Mode 2.0: Incredible X3D performance unleashed by AI
  • Dual Channel DDR5 : 4*DIMMs with AMD EXPO Memory Module Support. DDR5 OC up to 9000MT/s
  • AMD Socket AM5 : Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
  • Digital twin 18+2+2 phases VRM solution
  • M.2 EZ-Flex : high-efficiency heat dissipation & flexible patented baseplate for M.2 SSD
  • WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
  • M.2 EZ-Latch Click & Plus : Quick Release & Screwless Design on M.2 slots and heatsinks
  • Ultra-Fast Storage : 4*M.2 slots, including PCIe 5.0 x4
  • Fast Networking : 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
  • Extended Connectivity : HDMI, Dual USB4 Type-C with DP-Alt, Front QC-USB 65W
Vendor Homepage

https://www.gigabyte.com/
Category Code

MBA
Unit Box Height

0.092
Unit Box Length

0.34
Unit Box Width

0.31
Audio chip

Realtek ALC1220-VB
Audio output channels

7.1 channels channels
Component for

PC
Cooling type

Passive
Motherboard chipset

AMD X870E
Motherboard chipset family

AMD
Motherboard form factor

ATX
PC health monitoring

CPU, Fan, Temperature, Voltage, Water cooling
Power source type

ATX
Product colour

White
Windows operating systems supported

Windows 11 x64
Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor manufacturer

AMD
Processor socket

Socket AM5
Supported processor sockets

Socket AM5
ECC сompatibility

Non-ECC
Maximum internal memory

256 GB GB
Maximum internal memory per slot

64 GB GB
Memory channels

Dual-channel
Memory slots type

DIMM
Number of memory slots

4
Supported memory clock speed (max)

9000 MHz MHz
Supported memory clock speeds

9000,8800,8600,8400,8200,8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800 MHz MHz
Supported memory types

DDR5-SDRAM
Unbuffered memory

Yes
Number of HDDs supported

4
Number of storage drives supported

8
RAID levels

0, 1, 5, 10
RAID support

Yes
Supported storage drive interfaces

M.2, PCI Express 4.0, PCI Express 5.0, SATA III
Supported storage drive types

HDD & SSD
DirectX version

12.0
HDCP

Yes
Maximum resolution

4096 x 2304 pixels pixels
Parallel processing technology support

Not supported
ATX Power connector (24-pin)

Yes
CPU fan connector

Yes
EPS power connector (8-pin)

Yes
Front panel audio connector

Yes
Front panel connector

Yes
Number of chassis fan connectors

6
Number of CPU fan connectors

2
Number of EPS power connectors (8-pin)

2
Number of noise detection headers

1
Number of RGB LED pin headers

4
Number of SATA III connectors

4
Number of temperature sensor headers

2
Number of water pump connectors

3
RGB LED pin header

Yes
TPM connector

Yes
USB 2.0 connectors

2
USB 3.2 Gen 1 (3.1 Gen 1) connectors

2
USB 3.2 Gen 2x2 connectors

1
Digital audio optical out

1
DisplayPort version

1.4
Ethernet LAN (RJ-45) ports

1
HDMI ports quantity

1
HDMI version

2.1
Headphone outputs

1
Line-in

Yes
S/PDIF out port

Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

2
USB4 Gen 2x2 ports quantity

2
WiFi-AP antenna jack

2
Bluetooth

Yes
Bluetooth version

5.4
Ethernet interface type

2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN

Yes
LAN controller

Realtek RTL8126
Top Wi-Fi standard

Wi-Fi 7 (802.11be)
Wi-Fi

Yes
Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
WLAN controller model

Qualcomm QCNCM865
1st M.2 highest PCI Express generation

5.0
1st M.2 largest key size

25110
2nd M.2 highest PCI Express generation

5.0
2nd M.2 largest key size

22110
3rd M.2 highest PCI Express generation

4.0
3rd M.2 largest key size

22110
4th M.2 highest PCI Express generation

4.0
4th M.2 largest key size

22110
Number of M.2 (M) slots

4
PCI Express x16 (Gen 3.x) slots

1
PCI Express x16 (Gen 4.x) slots

1
PCI Express x16 (Gen 5.x) slots

1
ACPI version

5.0
BIOS memory size

512 Mbit Mbit
BIOS type

UEFI AMI
Clear CMOS button

Yes
Clear CMOS jumper

Yes
Desktop Management Interface (DMI) version

2.7
System Management BIOS (SMBIOS) version

2.7
Battery technology

Lithium-Manganese Dioxide (LiMnO2)
Battery type

CR2032
Battery weight

3 g g
Country of origin

Taiwan
Lithium weight per battery

0.07 g g
Number of battery cells

1
Package depth

310 mm mm
Package height

92 mm mm
Package weight

4.3 kg g
Package width

340 mm mm
Products per shipping (inner) case

1 pc(s) pc(s)
Depth

244 mm mm
Height

35 mm mm
Width

305 mm mm
Antenna included

Yes
Batteries included

Yes
Screws included

Yes
Warranty period

3 year(s) year(s)
Weight

3.74 kg g
Model

X870E A PRO X ICE
Units per Pallet

0
Units per Shipping Box

3
Unit Calculated Volume

0.01505 cubm
Unit Calculated Weight

4.27 kg
