SOLD OUT

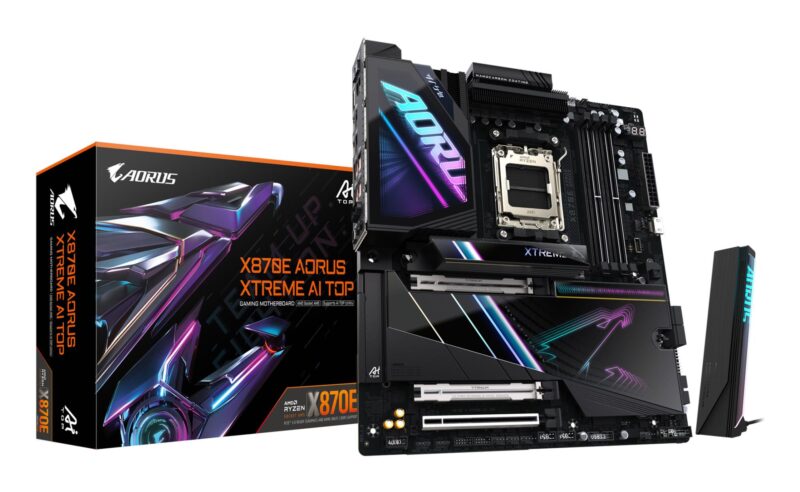

Mainboard|GIGABYTE|AMD X870E|SAM5|EATX|Memory DDR5|Memory slots 4|1xPCI-Express 4.0 4x |1xPCI-Express 4.0 8x|1xPCI-Express 5.0 16x|4xM.2|1xHDMI|2xUSB 2.0|6xUSB 3.2|2xUSB-C|1xOptical S/PDIF|2xRJ45|2xAudio port|X870EAXTREMEAITOP

Mainboard|GIGABYTE|AMD X870E|SAM5|EATX|Memory DDR5|Memory slots 4|1xPCI-Express 4.0 4x |1xPCI-Express 4.0 8x|1xPCI-Express 5.0 16x|4xM.2|1xHDMI|2xUSB 2.0|6xUSB 3.2|2xUSB-C|1xOptical S/PDIF|2xRJ45|2xAudio port|X870EAXTREMEAITOP

956,47 €

GIGABYTE X870E AORUS XTREME AI TOP Motherboard – Supports AMD Ryzen 9000 Series CPUs, 18+2+2 phases VRM, up to 8800MHz DDR5 (OC), 1xPCIe 5.0 M.2 + 3xPCIe 4.0 M.2, WI-FI 7, 10GbE LAN, USB 4. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 10 Gigabit Ethernet, LAN controller: Marvell AQtion AQC113C, Top Wi-Fi standard: Wi-Fi 7 (802.11be)

ΑΓΟΡΑ

Εξαντλημένο

Κωδικός προϊόντος: 1430305 Κατηγορία: Μάρκα:

Elevate your computing experience with GIGABYTE’s renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you’re a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

  • Training your own AI on your desk
  • DDR5 OC up to 8800MT/s
  • AMD Socket AM5 : Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
  • Digital twin 18+2+2 phases VRM solution
  • Dual Channel DDR5 : 4*DIMMs with AMD EXPO Memory Module Support
  • DDR Wind Blade : Enhanced Active Cooling for Memory Modules
  • M.2 EZ-Match : Magnetic alignment for easy installation of large heatsinks
  • WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
  • EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
  • EZ-Latch Click : M.2 heatsinks with screwless design
  • Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
  • Ultra-Fast Storage : 4*M.2 slots, including PCIe 5.0 / 4.0
  • Efficient Thermal : VRM Thermal Armor Advanced with I/O ZONE AORUS LIGHTING & M.2 Thermal Guard XL
Vendor Homepage

https://www.gigabyte.com/
Category Code

MBA
Unit Box Height

0.11
Unit Box Length

0.385
Unit Box Width

0.31
Audio chip

Realtek ALC1220
Audio output channels

7.1 channels channels
Component for

PC
Motherboard chipset

AMD X870E
Motherboard chipset family

AMD
Motherboard form factor

Extended ATX
PC health monitoring

Fan, Temperature, Voltage, Water cooling
Power source type

ATX
Product colour

Black
Windows operating systems supported

Windows 11 x64
Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor manufacturer

AMD
Processor socket

Socket AM5
Supported processor sockets

Socket AM5
ECC сompatibility

ECC & Non-ECC
Maximum internal memory

256 GB GB
Maximum internal memory per slot

64 GB GB
Memory channels

Dual-channel
Memory slots type

DIMM
Number of memory slots

4
Supported memory clock speed (max)

8800 MHz MHz
Supported memory clock speeds

8800,8600,8400,8266,8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5200,4800,4400 MHz MHz
Supported memory types

DDR5-SDRAM
Unbuffered memory

Yes
Number of HDDs supported

4
Number of storage drives supported

8
RAID levels

0, 1, 10
RAID support

Yes
Supported storage drive interfaces

M.2, SATA III
Supported storage drive types

HDD & SSD
DirectX version

12.0
HDCP

Yes
Maximum resolution

4096 x 2160 pixels pixels
Parallel processing technology support

Not supported
ATX Power connector (24-pin)

Yes
CPU fan connector

Yes
EPS power connector (8-pin)

Yes
Front panel audio connector

Yes
Front panel connector

Yes
Number of chassis fan connectors

8
Number of CPU fan connectors

1
Number of EPS power connectors (8-pin)

2
Number of RGB LED pin headers

4
Number of SATA III connectors

4
Number of water pump connectors

5
RGB LED pin header

Yes
TPM connector

Yes
USB 2.0 connectors

2
USB 3.2 Gen 1 (3.1 Gen 1) connectors

2
USB 3.2 Gen 2x2 connectors

1
DisplayPort version

1.4
Ethernet LAN (RJ-45) ports

2
HDMI ports quantity

1
HDMI version

2.1
Line-in

Yes
Microphone in

Yes
S/PDIF out port

Yes
USB 2.0 ports quantity

2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

6
USB4 Gen 2x2 ports quantity

2
WiFi-AP antenna jack

2
Bluetooth

Yes
Bluetooth version

5.3
Ethernet interface type

10 Gigabit Ethernet
Ethernet LAN

Yes
LAN controller

Marvell AQtion AQC113C
Top Wi-Fi standard

Wi-Fi 7 (802.11be)
Wi-Fi

Yes
Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
WLAN controller model

Qualcomm QCNCM865
1st M.2 highest PCI Express generation

5.0
1st M.2 largest key size

25110
2nd M.2 highest PCI Express generation

4.0
2nd M.2 largest key size

22110
3rd M.2 highest PCI Express generation

4.0
3rd M.2 largest key size

22110
4th M.2 highest PCI Express generation

4.0
4th M.2 largest key size

22110
Number of M.2 (M) slots

4
PCI Express x16 (Gen 4.x) slots

1
PCI Express x16 (Gen 5.x) slots

2
ACPI version

5.0
BIOS memory size

256 Mbit Mbit
BIOS type

UEFI AMI
Clear CMOS button

Yes
Clear CMOS jumper

Yes
Desktop Management Interface (DMI) version

2.7
System Management BIOS (SMBIOS) version

2.7
Battery technology

Lithium-Manganese Dioxide (LiMnO2)
Battery type

CR2032
Battery weight

3 g g
Country of origin

Taiwan
Lithium weight per battery

0.07 g g
Number of battery cells

1
Package depth

311 mm mm
Package height

107 mm mm
Package weight

4.5 kg g
Package width

381 mm mm
Products per shipping (inner) case

1 pc(s) pc(s)
Depth

269 mm mm
Height

35 mm mm
Width

305 mm mm
Antenna included

Yes
Batteries included

Yes
Bundled software

Norton® Internet Security (OEM version)
LAN bandwidth management software
Screws included

Yes
Warranty period

3 year(s) year(s)
Weight

3.76 kg g
Model

X870E AORUS XTREME AI TOP
Units per Shipping Box

2
Unit Calculated Volume

0.02093 cubm
Unit Calculated Weight

4.53 kg
