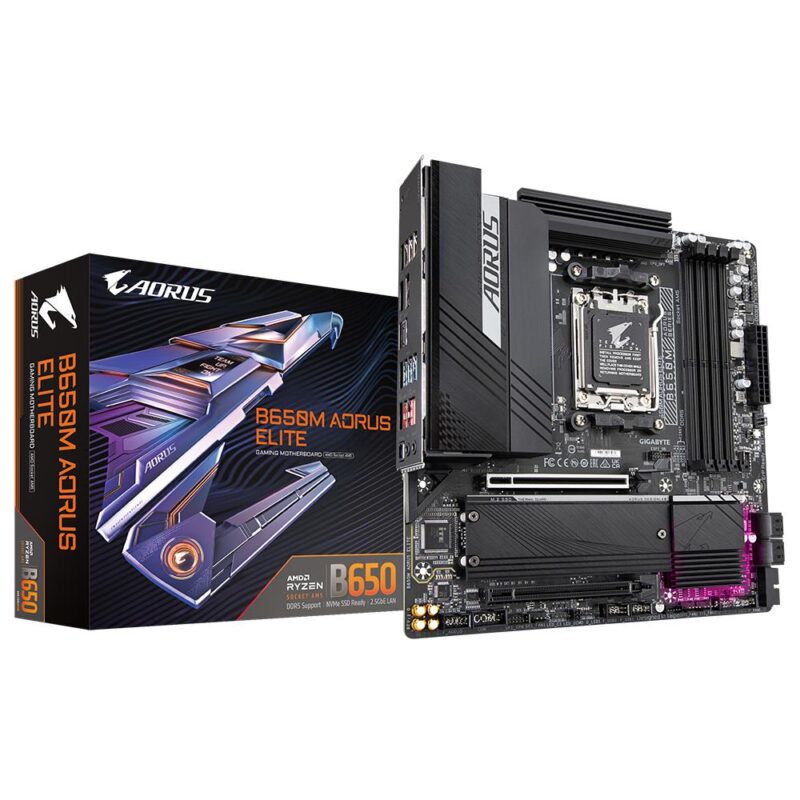

Mainboard|GIGABYTE|AMD B650|SAM5|Micro-ATX|Memory DDR5|Memory slots 4|B650MAORUSELITE1.3

Mainboard|GIGABYTE|AMD B650|SAM5|Micro-ATX|Memory DDR5|Memory slots 4|B650MAORUSELITE1.3

174,10 €

GIGABYTE B650M AORUS ELITE Motherboard – AMD Ryzen 9000 CPUs, 12+2+2 Phases VRM, up to 8000MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 2×2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125

ΑΓΟΡΑ

Σε απόθεμα

Κωδικός προϊόντος: 1439959 Κατηγορία: Μάρκα:

Elevate your computing experience with GIGABYTE’s renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you’re a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

  • AMD Socket AM5：Supports AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
  • Unparalleled Performance: Twin 12+2+2 Phases Digital VRM Solution
  • Dual Channel DDR5：4*DIMMs with AMD EXPO™ & Intel XMP Memory Module Support
  • Superfast Storage: 1* PCIe 5.0 x4 and 1* PCIe 4.0 x4 M.2 Connector
  • Advanced Thermal Design & M.2 Thermal Guard ：To Ensure VRM Power Stability & 25110 M.2 SSD Performance
  • EZ-Latch: PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
  • Fast Networks: 2.5GbE LAN
  • Extended Connectivity: HDMI, DP, Front USB-C® 20Gb/s, Rear USB-C 10Gb/s
Vendor Homepage

https://www.gigabyte.com/Motherboard/B650M-AORUS-ELITE-rev-10#kf
Category Code

MBA
Unit Box Height

0.069
Unit Box Length

0.274
Unit Box Width

0.267
Audio chip

Realtek ALC897
Audio output channels

7.1 channels channels
Component for

PC
Cooling type

Passive
Motherboard chipset

AMD B650
Motherboard chipset family

AMD
Motherboard form factor

ATX
PC health monitoring

Fan, Temperature, Voltage, Water cooling
Power source type

ATX
Product colour

Black
Windows operating systems supported

Windows 10 x64, Windows 11 x64
Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor manufacturer

AMD
Processor socket

Socket AM5
Supported processor sockets

Socket AM5
ECC сompatibility

Non-ECC
Maximum internal memory

256 GB GB
Maximum internal memory per slot

64 GB GB
Memory channels

Dual-channel
Memory slots type

DIMM
Number of memory slots

4
Supported memory clock speed (max)

8000 MHz MHz
Supported memory clock speeds

8000,7800,7600,7200,7000,6800,6666,6600,6400,6200,6000,5600,5200,4800,4400 MHz MHz
Supported memory types

DDR5-SDRAM
Unbuffered memory

Yes
Number of HDDs supported

4
Number of storage drives supported

6
RAID levels

0, 1, 10
RAID support

Yes
Supported storage drive interfaces

M.2, SATA III
Supported storage drive types

HDD & SSD
DirectX version

12.0
HDCP

Yes
Maximum resolution

4096 x 2160 pixels pixels
Parallel processing technology support

Not supported
12V power connector

Yes
ATX Power connector (24-pin)

Yes
CPU fan connector

Yes
EPS power connector (8-pin)

Yes
Front panel audio connector

Yes
Front panel connector

Yes
Number of chassis fan connectors

4
Number of CPU fan connectors

2
Number of EPS power connectors (8-pin)

1
Number of RGB LED pin headers

5
Number of SATA III connectors

4
Number of water pump connectors

2
RGB LED pin header

Yes
Serial port headers

1
Thunderbolt headers

1
TPM connector

Yes
USB 2.0 connectors

2
USB 3.2 Gen 1 (3.1 Gen 1) connectors

1
USB 3.2 Gen 2x2 connectors

1
DisplayPort version

1.4
DisplayPorts quantity

1
Ethernet LAN (RJ-45) ports

1
HDMI ports quantity

1
HDMI version

2.1
Headphone outputs

1
Line-in

Yes
S/PDIF out port

Yes
USB 2.0 ports quantity

4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

5
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2
USB 3.2 Gen 2x2 Type-C ports quantity

1
Ethernet interface type

2.5 Gigabit Ethernet
Ethernet LAN

Yes
LAN controller

Realtek RTL8125
Wi-Fi

No
1st M.2 highest PCI Express generation

5.0
1st M.2 largest key size

25110
2nd M.2 highest PCI Express generation

4.0
2nd M.2 largest key size

22110
Number of M.2 (M) slots

2
PCI Express x16 (Gen 4.x) slots

2
ACPI version

5.0
BIOS memory size

256 Mbit Mbit
BIOS type

UEFI AMI
Clear CMOS jumper

Yes
Desktop Management Interface (DMI) version

2.7
System Management BIOS (SMBIOS) version

2.7
Battery technology

Lithium-Manganese Dioxide (LiMnO2)
Battery type

CR2032
Battery weight

3 g g
Country of origin

China
Lithium weight per battery

0.07 g g
Number of battery cells

1
Package depth

268 mm mm
Package height

68 mm mm
Package weight

1.9 kg g
Package width

270 mm mm
Products per shipping (inner) case

1 pc(s) pc(s)
Depth

244 mm mm
Height

35 mm mm
Width

244 mm mm
Batteries included

Yes
Bundled software

Norton® Internet Security (OEM version)
LAN bandwidth management software
Screws included

Yes
Warranty period

3 year(s) year(s)
Weight

1.66 kg g
Model

B650M AORUS ELITE 1.3
Units per Shipping Box

8
Unit Calculated Volume

0.007239 cubm
Unit Calculated Weight

1.86 kg
