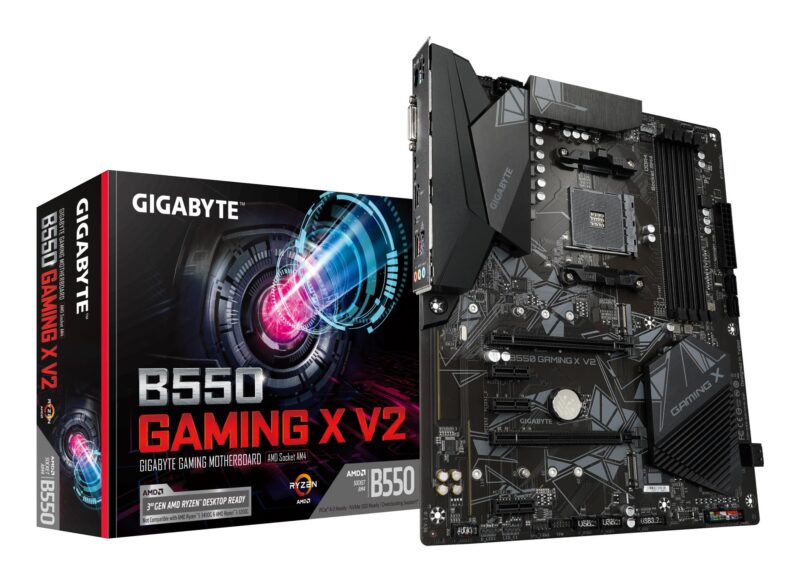

Mainboard|GIGABYTE|AMD B550|SAM4|ATX|Memory DDR4|Memory slots 4|3xPCI-Express 3.0 1x|1xPCI-Express 3.0 2x|1xPCI-Express 4.0 16x|2xM.2|1xDVI-D|1xHDMI|2xAudio-In|1xAudio-Out|2xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|B550GAMINGXV21.3

Mainboard|GIGABYTE|AMD B550|SAM4|ATX|Memory DDR4|Memory slots 4|3xPCI-Express 3.0 1x|1xPCI-Express 3.0 2x|1xPCI-Express 4.0 16x|2xM.2|1xDVI-D|1xHDMI|2xAudio-In|1xAudio-Out|2xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|B550GAMINGXV21.3

111,35 €

GIGABYTE B550 Gaming X V2 Motherboard – AMD Ryzen 5000 CPUs, 10+3 Phases VRM, up to 4733MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 1GbE LAN, USB 3.2 Gen 2. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H. Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD

ΑΓΟΡΑ

Σε απόθεμα

Κωδικός προϊόντος: 1390145 Κατηγορία: Μάρκα:

Elevate your computing experience with GIGABYTE’s renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you’re a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

  • Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series/ Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
  • 10+3 Phases Digital Twin Power Design with Low RDS(on) MOSFETs
  • Ultra Durable™ PCIe 4.0 Ready x16 Slot
  • Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 Connectors
  • Realtek GbE LAN with Bandwidth Management
  • Front USB 3.2 Gen1 Type-C and HDMI & DVI-D for Multiple Display
  • High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
  • RGB FUSION 2.0 support Addressable LED & RGB LED Strips
  • Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
  • Anti-Sulfur Resistors Design
Vendor Homepage

https://www.gigabyte.com/
Category Code

MBA
Unit Box Height

0.08
Unit Box Length

0.34
Unit Box Width

0.27
Audio chip

Realtek ALC897
Audio output channels

7.1 channels channels
Component for

PC
Cooling type

Passive
Motherboard chipset

AMD B550
Motherboard chipset family

AMD
Motherboard form factor

ATX
PC health monitoring

Fan, Temperature, Voltage, Water cooling
Power source type

ATX
Product colour

Brown
Windows operating systems supported

Windows 10 x64, Windows 11 x64
Compatible processor series

AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series
Maximum number of SMP processors

1
Processor manufacturer

AMD
Processor socket

Socket AM4
Supported processor sockets

Socket AM4
ECC сompatibility

ECC & Non-ECC
Maximum internal memory

128 GB GB
Maximum internal memory per slot

32 GB GB
Memory channels

Dual-channel
Memory slots type

DIMM
Number of memory slots

4
Supported memory clock speed (max)

4733 MHz MHz
Supported memory clock speeds

4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz MHz
Supported memory types

DDR4-SDRAM
Unbuffered memory

Yes
Number of HDDs supported

4
Number of storage drives supported

6
RAID levels

0, 1, 10
RAID support

Yes
Supported storage drive interfaces

M.2, SATA III
Supported storage drive types

HDD & SSD
DirectX version

12.0
HDCP

Yes
Parallel processing technology support

Not supported
12V power connector

Yes
ATX Power connector (24-pin)

Yes
CPU fan connector

Yes
EPS power connector (8-pin)

Yes
Front panel audio connector

Yes
Front panel connector

Yes
Number of chassis fan connectors

3
Number of CPU fan connectors

1
Number of EPS power connectors (8-pin)

1
Number of RGB LED pin headers

5
Number of SATA III connectors

4
Number of water pump connectors

4
RGB LED pin header

Yes
TPM connector

Yes
USB 2.0 connectors

2
USB 3.2 Gen 1 (3.1 Gen 1) connectors

2
DVI-D ports quantity

1
Ethernet LAN (RJ-45) ports

1
HDMI ports quantity

1
HDMI version

2.1
Headphone outputs

1
Line-in

Yes
Microphone in

Yes
PS/2 ports quantity

1
USB 2.0 ports quantity

2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1
Ethernet interface type

Gigabit Ethernet
Ethernet LAN

Yes
LAN controller

Realtek RTL8111H
Wi-Fi

No
1st M.2 highest PCI Express generation

4.0
1st M.2 largest key size

22110
2nd M.2 highest PCI Express generation

3.0
2nd M.2 largest key size

22110
Number of M.2 (M) slots

2
PCI Express x1 (Gen 3.x) slots

3
PCI Express x16 (Gen 3.x) slots

2
PCI Express x16 (Gen 4.x) slots

1
ACPI version

5.0
BIOS memory size

128 Mbit Mbit
BIOS type

UEFI AMI
Clear CMOS jumper

Yes
Desktop Management Interface (DMI) version

2.7
System Management BIOS (SMBIOS) version

2.7
Battery technology

Lithium-Manganese Dioxide (LiMnO2)
Battery type

CR2032
Battery weight

3 g g
Country of origin

China
Harmonized System (HS) code

84733020
Lithium weight per battery

0.07 g g
Number of battery cells

1
Package depth

270 mm mm
Package height

80 mm mm
Package weight

1.71 kg g
Package width

335 mm mm
Products per shipping (inner) case

1 pc(s) pc(s)
Depth

244 mm mm
Height

35 mm mm
Width

305 mm mm
Batteries included

Yes
Bundled software

Norton® Internet Security (OEM version)
LAN bandwidth management software
Screws included

Yes
DVI port

Yes
Warranty period

3 year(s) year(s)
Weight

1.12 kg g
Model

B550 GAMING X V2 (rev. 1.3)
Units per Pallet

0
Units per Shipping Box

8
Unit Calculated Volume

0.01006 cubm
Unit Calculated Weight

1.7 kg
