SOLD OUT

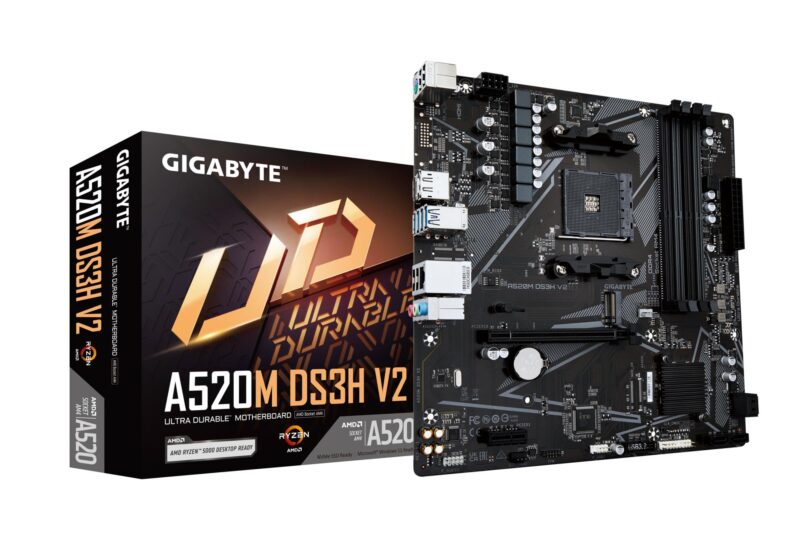

Mainboard|GIGABYTE|AMD A520|SAM4|Micro-ATX|Memory DDR4|Memory slots 4|A520MDS3HV2

Mainboard|GIGABYTE|AMD A520|SAM4|Micro-ATX|Memory DDR4|Memory slots 4|A520MDS3HV2

Original price was: 70,07 €.Η τρέχουσα τιμή είναι: 62,75 €.

GIGABYTE A520M DS3H V2 Motherboard – Supports AMD Ryzen 5000 Series AM4 CPUs, up to 4733MHz DDR4 (OC), PCIe 3.0 x16, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen Threadripper 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 5120 x 2880 pixels. USB connector type: USB Type-A

ΑΓΟΡΑ

Εξαντλημένο

Κωδικός προϊόντος: 1406559 Κατηγορία: Μάρκα:

Elevate your computing experience with GIGABYTE’s renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you’re a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.

  • Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
  • Ultra Durable™ PCIe 3.0 x16 Slot
  • NVMe PCIe 3.0 M.2 Connectors
  • High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
  • GbE LAN with Bandwidth Management
  • Rear DisplayPort and HDMI for Multi-display Support
  • Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Anti-Sulfur Resistors Design
Vendor Homepage

https://www.gigabyte.com/Motherboard/A520M-DS3H-V2-rev-10#kf
Category Code

MBA
Unit Box Height

0.055
Unit Box Length

0.27
Unit Box Width

0.265
Audio chip

Realtek ALC887
Audio output channels

7.1 channels channels
Component for

PC
Cooling type

Active
Motherboard chipset family

AMD
Motherboard form factor

micro ATX
PC health monitoring

CPU, LED, Power supply, Temperature, Voltage
Power source type

ATX
Product colour

Black
Windows operating systems supported

Windows 10 x64
Compatible processor series

AMD Ryzen 3000 Series, AMD Ryzen Threadripper 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series
Maximum internal memory supported by processor

128 GB GB
Maximum number of SMP processors

1
Processor manufacturer

AMD
Processor socket

Socket AM4
Supported processor sockets

Socket AM4
ECC сompatibility

ECC & Non-ECC
Maximum internal memory

128 GB GB
Memory channels

Dual-channel
Memory slots type

DIMM
Number of memory slots

4
Supported memory clock speeds

2133,2400,2667,2933,3200,3333,3600,4000,4400,4733 MHz MHz
Supported memory module capacities

1GB, 2GB, 4GB, 8GB, 16GB, 32GB
Supported memory types

DDR4-SDRAM
Unbuffered memory

Yes
Number of HDDs supported

4
Number of storage drives supported

5
RAID levels

0, 1, 10
RAID support

Yes
Supported storage drive interfaces

M.2, SATA III
Supported storage drive types

HDD & SSD
Discrete graphics support

Yes
HDCP

Yes
Maximum resolution

5120 x 2880 pixels pixels
Number of displays supported

3
12V power connector

Yes
ATX Power connector (24-pin)

Yes
CPU fan connector

Yes
Front panel audio connector

Yes
Front panel connector

Yes
Number of EATX power connectors

1
Number of SATA III connectors

4
Power fan connector

Yes
Serial port headers

1
Total number of SATA connectors

4
TPM connector

Yes
USB 2.0 connectors

1
USB 3.2 Gen 1 (3.1 Gen 1) connectors

1
Digital audio optical out

1
DisplayPort version

2.0
DisplayPorts quantity

1
DVI-D ports quantity

1
Ethernet LAN (RJ-45) ports

1
HDMI ports quantity

1
HDMI version

2.1
Headphone outputs

1
Microphone in

Yes
PS/2 ports quantity

1
USB 2.0 ports quantity

2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4
USB connector type

USB Type-A
Ethernet interface type

Gigabit Ethernet
Ethernet LAN

Yes
Wi-Fi

No
Number of M.2 (M) slots

1
PCI Express x1 (Gen 3.x) slots

2
PCI Express x16 (Gen 3.x) slots

1
ACPI version

5.0
BIOS memory size

128 Mbit Mbit
BIOS type

UEFI AMI
Clear CMOS button

Yes
Clear CMOS jumper

Yes
Desktop Management Interface (DMI) version

2.7
System Management BIOS (SMBIOS) version

2.7
Battery technology

Lithium-Manganese Dioxide (LiMnO2)
Battery type

CR2032
Battery weight

3 g g
Country of origin

China
Lithium weight per battery

0.07 g g
Number of battery cells

1
Package depth

265 mm mm
Package height

54 mm mm
Package weight

810 g g
Package width

265 mm mm
Products per shipping (inner) case

1 pc(s) pc(s)
Depth

244 mm mm
Height

35 mm mm
Width

244 mm mm
Batteries included

Yes
Bundled software

Norton Internet Security (OEM version)
Realtek 8118 Gaming LAN Bandwidth Control Utility
Cables included

SATA
Drivers included

Yes
Warranty period

3 year(s) year(s)
Model

A520M DS3H V2
Units per Shipping Box

10
Unit Calculated Volume

0.004711 cubm
Unit Calculated Weight

0.89 kg
