SOLD OUT
Mainboard|ASUS|Intel Z890|LGA1851|ATX|Memory DDR5|Memory slots 4|ROGSTRIXZ890-HGAMWIFI

Mainboard|ASUS|Intel Z890|LGA1851|ATX|Memory DDR5|Memory slots 4|ROGSTRIXZ890-HGAMWIFI

451,30 €

ASUS ROG STRIX Z890-H GAMING WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel

ΑΓΟΡΑ

Εξαντλημένο

Κωδικός προϊόντος: 1447134 Κατηγορία: Μάρκα:

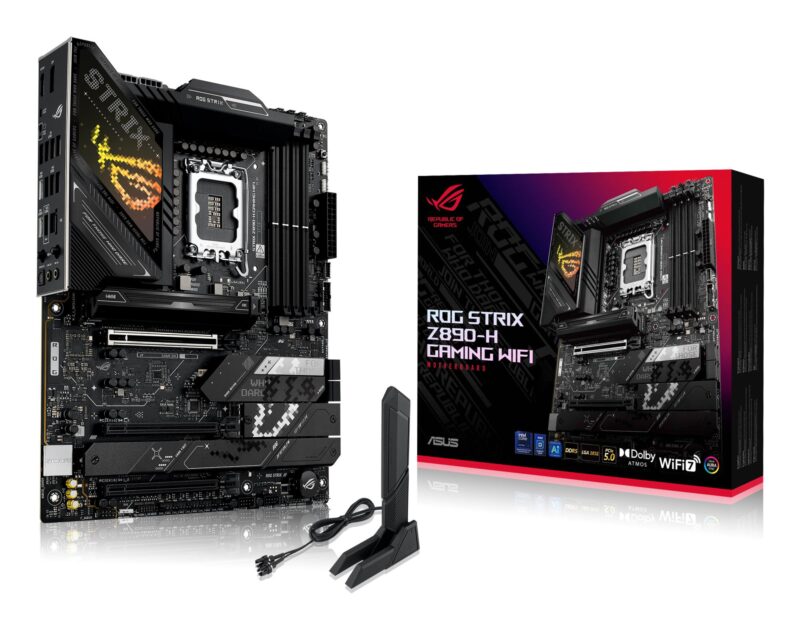

ROG STRIX Z890-H gaming wifi
Powered advanced AI technologies and compatible with Intel processors featuring a Neural Processing Unit, the ROG STRIX Z890-H Gaming WiFi enables advanced AI PC applications. It features a USB 20Gbps Type-C® rear I/O port with up to 30-watt Power Delivery for fast charging, PCIe® 5.0 support, and Aura lighting. These capabilities provide ultra-fast data transfers, exceptional connectivity and customizable lighting that can be understated or striking.

ASUS AI ADVISOR
Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.

* Availability of ASUS AI Advisor may vary by region.

ai OVERCLOCKING
ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits.

ai cOOLING II
Balance the thermals and acoustics of any build with a single click.

AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.

Vendor Homepage

https://rog.asus.com/motherboards/rog-strix/rog-strix-z890-h-gaming-wifi/
Category Code

MBI
Unit Box Height

0.275
Unit Box Length

0.355
Unit Box Width

0.075
Audio chip

Realtek ALC1220P
Audio output channels

7.1 channels channels
Component for

PC
Motherboard chipset

Intel Z890
Motherboard chipset family

Intel
Motherboard form factor

ATX
Product colour

Black
Windows operating systems supported

Windows 11
Compatible processor series

Intel Core Ultra (Series 2)
Processor manufacturer

Intel
Processor socket

LGA 1851 (Socket V1)
Supported processor sockets

LGA 1851
ECC сompatibility

Non-ECC
Maximum internal memory

256 GB GB
Memory channels

Dual-channel
Memory slots type

DIMM
Number of memory slots

4
Supported memory types

DDR5-SDRAM
Unbuffered memory

Yes
Number of HDDs supported

4
Number of storage drives supported

8
RAID levels

0, 1, 5, 10
RAID support

Yes
Supported storage drive interfaces

M.2, SATA III
Supported storage drive types

HDD & SSD
On-board graphics card

No
Parallel processing technology support

Not supported
12V power connector

Yes
ATX Power connector (24-pin)

Yes
Chassis intrusion connector

Yes
CPU fan connector

Yes
EPS power connector (8-pin)

Yes
Front panel audio connector

Yes
Front panel connector

Yes
Number of chassis fan connectors

5
Number of CPU fan connectors

2
Number of EPS power connectors (8-pin)

2
Number of SATA III connectors

4
Number of temperature sensor headers

1
Thunderbolt headers

1
USB 2.0 connectors

2
USB 3.2 Gen 1 (3.1 Gen 1) connectors

1
USB 3.2 Gen 2x2 connectors

1
DisplayPorts quantity

1
Ethernet LAN (RJ-45) ports

1
HDMI ports quantity

1
Microphone in

Yes
S/PDIF out port

Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

4
USB 3.2 Gen 2x2 Type-C ports quantity

2
WiFi-AP antenna jack

1
Bluetooth

Yes
Bluetooth version

5.4
Ethernet interface type

5 Gigabit Ethernet
Ethernet LAN

Yes
Top Wi-Fi standard

Wi-Fi 7 (802.11be)
Wi-Fi

Yes
Wi-Fi standards

Wi-Fi 7 (802.11be)
1st M.2 highest PCI Express generation

5.0
1st M.2 largest key size

22110
2nd M.2 highest PCI Express generation

4.0
2nd M.2 largest key size

2580
3rd M.2 highest PCI Express generation

4.0
3rd M.2 largest key size

22110
4th M.2 highest PCI Express generation

4.0
4th M.2 largest key size

2280
Number of M.2 (M) slots

4
PCI Express x16 (Gen 4.x) slots

2
PCI Express x16 (Gen 5.x) slots

1
BIOS memory size

256 Mbit Mbit
BIOS type

UEFI AMI
Package depth

273 mm mm
Package height

68 mm mm
Package weight

2.52 kg g
Package width

353 mm mm
Depth

244 mm mm
Width

305 mm mm
Antenna included

Yes
Cables included

SATA
Model

ROG STRIX Z890-H GAMING WIFI
Units per Shipping Box

4
Unit Calculated Volume

0.0079134 cubm
Unit Calculated Weight

2.525 kg
