Intel B760 | micro ATX | Audio 7.1 channels | CPU Intel | Socket LGA 1700 | Series Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold | Supported memory types DDR4-SDRAM | 2xNumber of memory slots | Memory slots type DIMM | Supported storage drive interfaces M.2,SATA III | 2xUSB 2.0 ports quantity | 4xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1xEthernet LAN (RJ-45) ports | 1xVGA (D-Sub) ports quantity | 1xHDMI ports quantity | Weight 528 g
SOLD OUT

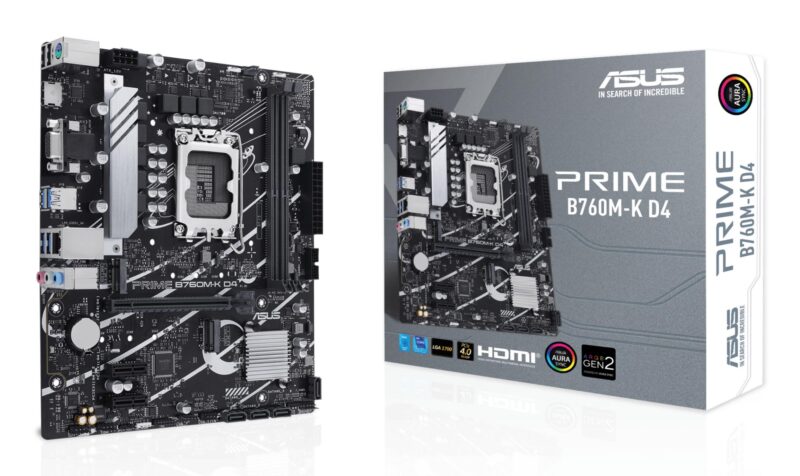

Mainboard|ASUS|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR4|Memory slots 2|2xPCI-Express 4.0 1x|1xPCI-Express 4.0 16x|2xM.2|1x15pin D-sub|1xHDMI|2xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|PRIMEB760M-KD4
116,75 €
ASUS PRIME B760M-K D4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,…. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. USB connector type: USB Type-A. Ethernet interface type: 2.5 Gigabit Ethernet
ΑΓΟΡΑ
Εξαντλημένο
| Vendor Homepage | http://www.asus.com/motherboards-components/motherboards/prime/prime-b760m-k-d4/ |
|---|---|
| Category Code | MBI |
| Unit Box Height | 0.055 |
| Unit Box Length | 0.27 |
| Unit Box Width | 0.265 |
| Audio output channels | 7.1 channels channels |
| Component for | PC |
| Motherboard chipset | Intel B760 |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Supported processor sockets | LGA 1700 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 64 GB GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Supported memory clock speed (max) | 5333 MHz MHz |
| Supported memory clock speeds | 2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,4000,4266,4400,4600,4800,5000,5066,5333 MHz MHz |
| Supported memory types | DDR4-SDRAM |
| Unbuffered memory | Yes |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| RAID levels | 0, 1, 5, 10 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| Parallel processing technology support | Not supported |
| 12V power connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Front panel audio connector | Yes |
| Number of chassis fan connectors | 1 |
| Number of COM connectors | 1 |
| Number of SATA III connectors | 4 |
| RGB LED pin header | Yes |
| S/PDIF out connector | Yes |
| TPM connector | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| Microphone in | Yes |
| PS/2 ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB connector type | USB Type-A |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wake-on-LAN ready | Yes |
| Wi-Fi | No |
| Number of M.2 (M) slots | 2 |
| PCI Express x1 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| BIOS memory size | 128 Mbit Mbit |
| BIOS type | UEFI AMI |
| Package depth | 51.5 mm mm |
| Package height | 263 mm mm |
| Package weight | 926.3 g g |
| Package width | 270 mm mm |
| Depth | 211 mm mm |
| Height | 36 mm mm |
| Width | 244 mm mm |
| Cables included | SATA |
| Weight | 528 g g |
| Model | PRIME B760M-K D4 |
| Units per Shipping Box | 10 |
| Unit Calculated Volume | 0.004834 cubm |
| Unit Calculated Weight | 0.998 kg |
