Mainboard|ASUS|AMD B650|SAM5|ATX|Memory DDR5|2xPCI-Express 4.0 1x|2xPCI-Express 4.0 16x|2xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|2xUSB 3.0|3xUSB 3.2|2xUSB-C|1xOptical S/PDIF|1xRJ45|5xAudio port|PRIMEB650-PLUSWIFI

Mainboard|ASUS|AMD B650|SAM5|ATX|Memory DDR5|2xPCI-Express 4.0 1x|2xPCI-Express 4.0 16x|2xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|2xUSB 3.0|3xUSB 3.2|2xUSB-C|1xOptical S/PDIF|1xRJ45|5xAudio port|PRIMEB650-PLUSWIFI

212,41 €

ASUS PRIME B650-PLUS WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD

ΑΓΟΡΑ

Εξαντλημένο

Κωδικός προϊόντος: 1432668 Κατηγορία: Μάρκα:

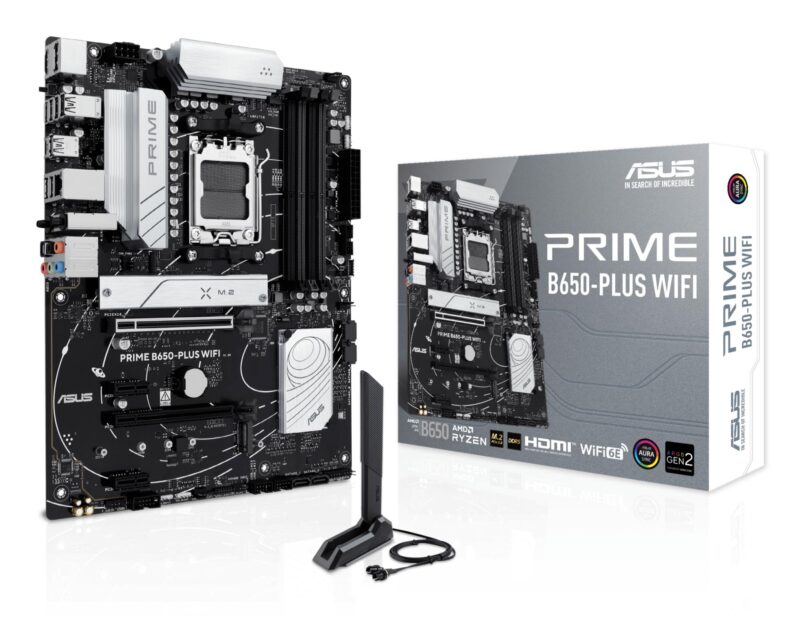

B650-PLUS WIFI
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 9000 & 8000 & 7000 Series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B650-PLUS WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. This platform delivers the power and connectivity that advanced AI PC applications demand.

  • AMD AM5 Socket: Ready for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
  • Ultrafast Connectivity: WIFI 6E, M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, USB 10Gbps Type-C®, front USB 5Gbps Type-C®, Thunderbolt™ 4 header support
  • ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
  • Comprehensive Cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
  • Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
Vendor Homepage

https://www.asus.com/motherboards-components/motherboards/prime/prime-b650-plus-wifi/
Category Code

MBA
Unit Box Height

0.275
Unit Box Length

0.342
Unit Box Width

0.069
Audio output channels

7.1 channels channels
Component for

PC
Motherboard chipset

AMD B650
Motherboard chipset family

AMD
Motherboard form factor

ATX
Windows operating systems supported

Windows 10 x64, Windows 11
Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor manufacturer

AMD
Processor socket

Socket AM5
Supported processor sockets

Socket AM5
ECC сompatibility

ECC & Non-ECC
Maximum internal memory

192 GB GB
Memory channels

Dual-channel
Memory slots type

DIMM
Number of memory slots

4
Supported memory clock speed (max)

7600 MHz MHz
Supported memory clock speeds

7400,4800,7600,7800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz MHz
Supported memory types

DDR5-SDRAM
Unbuffered memory

Yes
Number of HDDs supported

4
Number of storage drives supported

6
RAID levels

0, 1, 10
RAID support

Yes
Supported storage drive interfaces

M.2, SATA III
Supported storage drive types

HDD & SSD
Parallel processing technology support

Not supported
12V power connector

Yes
ATX Power connector (24-pin)

Yes
CPU fan connector

Yes
EPS power connector (8-pin)

Yes
Front panel audio connector

Yes
Front panel connector

Yes
Number of chassis fan connectors

3
Number of COM connectors

1
Number of CPU fan connectors

2
Number of RGB LED pin headers

1
Number of SATA III connectors

4
RGB LED pin header

Yes
Thunderbolt headers

1
TPM connector

Yes
USB 2.0 connectors

2
USB 3.2 Gen 1 (3.1 Gen 1) connectors

2
DisplayPorts quantity

1
Ethernet LAN (RJ-45) ports

1
HDMI ports quantity

1
S/PDIF out port

Yes
USB 2.0 ports quantity

2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1
WiFi-AP antenna jack

1
Bluetooth

Yes
Bluetooth version

5.3
Ethernet interface type

2.5 Gigabit Ethernet
Ethernet LAN

Yes
Top Wi-Fi standard

Wi-Fi 6E (802.11ax)
Wi-Fi

Yes
Wi-Fi standards

Wi-Fi 6E (802.11ax)
1st M.2 highest PCI Express generation

5.0
1st M.2 largest key size

22110
2nd M.2 highest PCI Express generation

4.0
2nd M.2 largest key size

22110
Number of M.2 (M) slots

2
PCI Express x1 (Gen 4.x) slots

2
PCI Express x16 (Gen 4.x) slots

2
BIOS memory size

256 Mbit Mbit
BIOS type

UEFI AMI
Package depth

373 mm mm
Package height

68 mm mm
Package weight

1.35 kg g
Package width

338 mm mm
Depth

244 mm mm
Width

305 mm mm
Antenna included

Yes
Cables included

SATA
Screws included

Yes
Model

PRIME B650-PLUS WIFI
Units per Shipping Box

5
Unit Calculated Volume

0.00769 cubm
Unit Calculated Weight

1.84 kg
