SOLD OUT

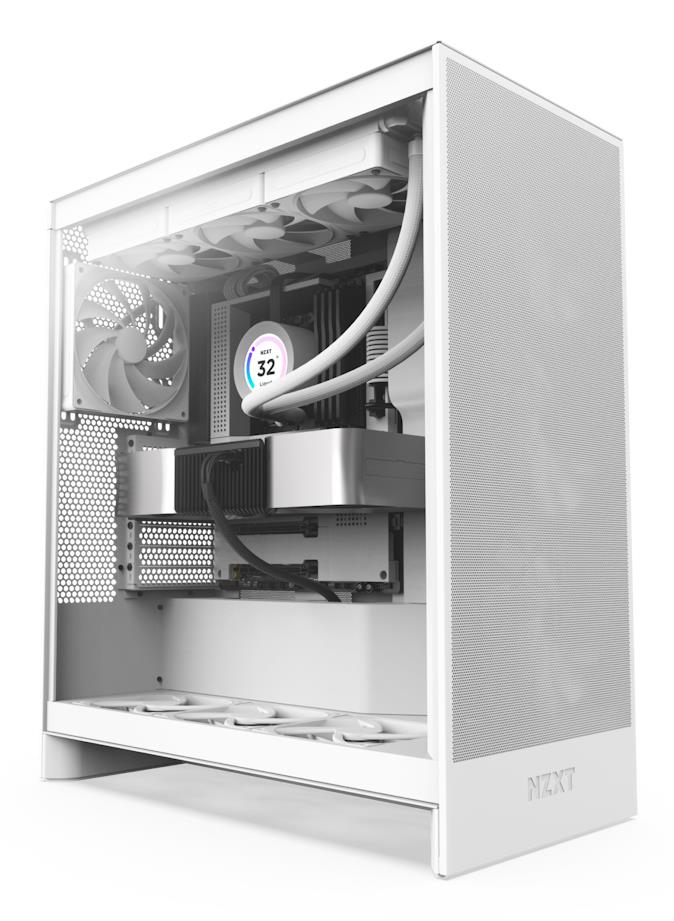

Case|NZXT|H7 Flow|MidiTower|ATX|EATX|MicroATX|MiniITX|Colour White|CM-H72FW-01

146,02 €

NZXT H7 Flow. Form factor: Midi Tower, Type: PC, Product colour: White. Front fans installed: 3x 120 mm, Front fans diameters supported: 120,140 mm, Rear fans diameters supported: 120,140 mm. Supported HDD sizes: 2.5,3.5″. Width: 244 mm, Depth: 468 mm, Height: 544 mm

ΑΓΟΡΑ

Εξαντλημένο

Κωδικός προϊόντος: 1424582 Κατηγορία: Cases Μάρκα: NZXT

The H7 Flow revolutionizes GPU cooling in a classic mid-tower form factor. Its vertical PSU layout allows space for 3 x 120mm bottom fans, offering efficient cooling without expanding the case footprint.

Dedicated GPU Cooling
Supports three bottom-mounted 120mm fans for direct GPU cooling in a narrow mid-tower footprint.
Angled H7 Flow showing front 3 120mm fansAngled H7 Flow showing front 3 120mm fans

Out-of-the-Box Performance
Comes equipped with 3 x 120mm front-mounted fans for exceptional out-of-the-box cooling performance.

Optimized for Airflow
High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust.
H7 Flow showing radiator size supportH7 Flow showing radiator size support

Large Radiator Support
Supports up to a 420mm radiator in front and 360mm radiator up top for max cooling potential.
Open Back of H7 Flow showing cable managementOpen Back of H7 Flow showing cable management

Easily Manage Cables
Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing.

10-Fan Capacity
Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear.

Top I/O Ports
Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel.
Exploded view of H7 Flow panelsExploded view of H7 Flow panels

Tool-less Panel Access
Tool-less access to the front, top, and side panels makes building and upgrading a breeze.

Supports three bottom-mounted 120mm fans for direct GPU cooling while retaining a narrow mid-tower footprint
Comes equipped with three front-mounted 120mm fans for exceptional out-of-the-box cooling
High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust
Supports up to 420mm radiators in the front and 360mm radiators in the top for powerful cooling potential
Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing
Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear
Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel
Tool-less access to the front, top, and side panels makes building and upgrading a breeze

Vendor Homepage	https://nzxt.com/product/h7-flow#
Category Code	CAS
Unit Box Height	0.57
Unit Box Length	0.63
Unit Box Width	0.325
Cable management	Yes
Form factor	Midi Tower
Material	SGCC, Tempered glass
Maximum CPU cooler height	18.5 cm mm
Maximum graphics card length	41 cm mm
Maximum PSU length	20 cm mm
Number of 2.5" bays	4
Number of 3.5" bays	2
On/off button	Yes
Product colour	White
Reset button	No
Side window	Yes
Supported motherboard form factors	ATX, EATX, micro ATX, Mini-ITX
Tempered glass panel(s)	Yes
Type	PC
Power supply included	No
Audio output	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Fan 2 maximum air pressure	1.05 mmH2O mmH2O
Fan 2 maximum airflow	60.2 cfm cfm
Fan speed	1200 – 1500 RPM RPM
Fan speed control	No
Front fans diameters supported	120,140 mm mm
Front fans installed	3x 120 mm
Front radiator sizes supported	360,420 mm mm
Maximum air pressure	1.05 mmH2O mmH2O
Maximum airflow	60.2 cfm cfm
Number of front fans supported (max)	3
Number of rear fans supported (max)	1
Number of top fans supported (max)	3
Rear fans diameters supported	120,140 mm mm
Rear radiator sizes supported	140 mm mm
Top fans diameters supported	120,140 mm mm
Top radiator sizes supported	360 mm mm
Supported HDD sizes	2.5,3.5" "
Warranty period	2 year(s) year(s)
Depth	468 mm mm
Height	544 mm mm
Weight	11.1 kg g
Width	244 mm mm
Model name	H7 Flow
Units per Shipping Box	1
Unit Calculated Volume	0.1167 cubm
Unit Calculated Weight	14 kg
