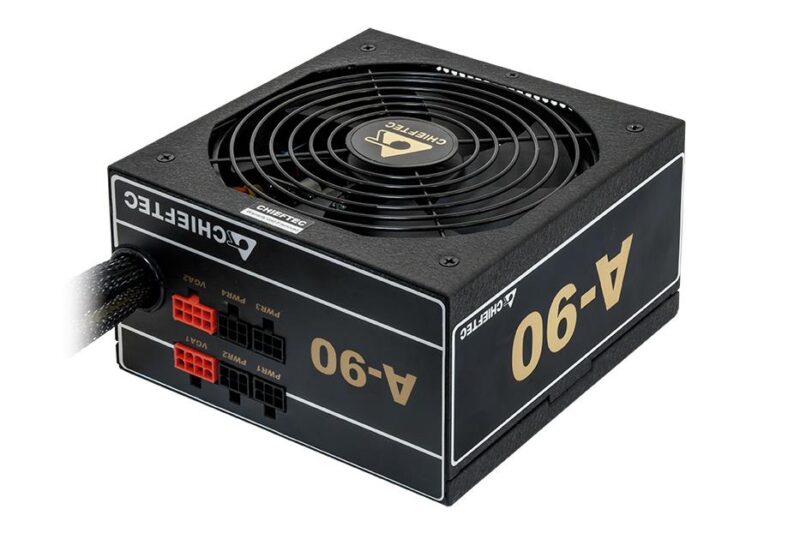

CASE PSU ATX 750W/GDP-750C CHIEFTEC

CASE PSU ATX 750W/GDP-750C CHIEFTEC

Original price was: 83,31 €.Η τρέχουσα τιμή είναι: 78,86 €.

Chieftec GDP-750C. Total power: 750 W, AC input voltage: 200 – 240 V, AC input frequency: 47 – 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Semi-Modular. Purpose: PC, Power supply unit (PSU) form factor: PS/2. Product colour: Black, Fan diameter: 14 cm, Number of fans: 1 fan(s). Width: 160 mm, Depth: 150 mm, Height: 87 mm

ΑΓΟΡΑ

Σε απόθεμα

Κωδικός προϊόντος: 1207558 Κατηγορία: Μάρκα:

Efficiency at low cost, that’s the reason, why the new A-90 series from CHIEFTEC has been invented. The three high performance PSU’s cover with their nominal power output of 550 watts – 750 watts all kinds of usage possibilities. With a fixed output voltage of 230 V, this power supply series is especially made for cost-aware computer consumers. The PSU’s have an efficiency of >90% and thus meet the 80plus gold requirements.

Vendor Homepage

https://www.chieftec.eu/en/psus/a-90-serie/gdp-750c.html
Category Code

PSU
Unit Box Height

0.1
Unit Box Length

0.25
Unit Box Width

0.22
AC input frequency

47 – 63 Hz Hz
AC input voltage

200 – 240 V V
Combined power (+12V)

744 W W
Combined power (+3.3V)

120 W W
Combined power (+5V)

120 W W
Combined power (+5Vsb)

2.5 W W
Max output current (+12V1)

62 A A
Max output current (+3.3V)

22 A A
Max output current (+5V)

22 A A
Max output current (-12V)

0.3 A A
Power factor

0.9
Power Factor Correction (PFC) type

Active
Power protection features

Over current, Over voltage, Overheating, Overload, Short circuit, Under voltage
Total power

750 W W
Cabling type

Semi-Modular
EPS power connector (8-pin)

Yes
Floppy drive power connector

1
Motherboard power connector

20+4 pin ATX
Number of SATA power connectors

8
PCI Express power connectors (6+2 pin)

4
Peripheral (Molex) power connectors (4-pin)

3
ATX version

2.3
Power supply unit (PSU) form factor

PS/2
Purpose

PC
Fan diameter

14 cm mm
Fan location

Top
Number of fans

1 fan(s) fan(s)
Product colour

Black
Depth

150 mm mm
Height

87 mm mm
Width

160 mm mm
Harmonized System (HS) code

84733020
Frequency tolerance

90% %
Units per Pallet

0
Units per Shipping Box

6
Unit Calculated Volume

0.006408 cubm
Unit Calculated Weight

2.6 kg
