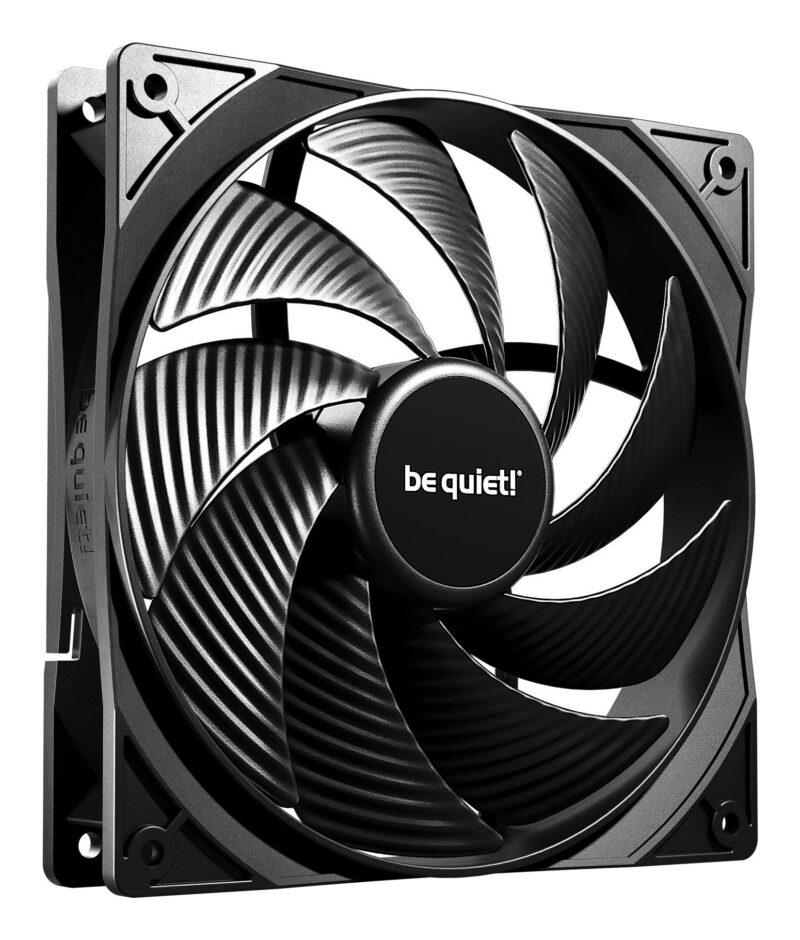

CASE FAN 140MM PURE WINGS 3/PWM HS 3PACK BL138 BE QUIET

39,12

be quiet! Pure Wings 3 140mm | PWM high-speed Triple Pack. Type: Fan, Fan diameter: 14 cm, Rotational speed (max): 1800 RPM, Airflow: 122.6 m³/h, Maximum air pressure: 2.44 mmH2O, Bearing type: Rifle bearing. Voltage: 5 – 13.2 V. Product colour: Black

ΑΓΟΡΑ

Σε απόθεμα

Κωδικός προϊόντος: 1450695 Κατηγορία: Μάρκα:

PURE WINGS 3
140mm PWM HS 3-Pack

PERFORMANT, PROGRESSIVE, QUIET
Pure Wings 3 140mm PWM high-speed Triple Pack is the perfect addition to demanding PCs with extraordinarily high performance and progressive features such as a speed-regulating closed loop motor.

INNOVATIVE TECHNOLOGY
Closed loop motor for persistent rpm
Pure Wings 3 140mm PWM high-speed Triple Pack features a closed loop motor. This technology is comparable with the cruise control in cars. When working against resistance, for example a fan grill or radiator, fans spin slower as a result. The closed loop motor technology constantly monitors the current fan speed and increases it to the target rpm, if necessary. As a result, Pure Wings 3 140mm PWM high-speed Triple Pack always operates at the desired speed, no matter the resistance.

OPTIMIZED TO THE MAX
For unprecedented air pressure in its class
The fan frame outlet is newly designed to minimize air leaks. This benefits especially the radiator performance of Pure Wings 3 140mm PWM high-speed Triple Pack. To reach even higher performance, the fan blades are optimized as well: Their angle is adjusted to achieve even more air pressure, adding up to the extraordinary performance of Pure Wings 3 140mm PWM high-speed Triple Pack.

FOR RADIATORS AND HEATSINKS
Fan blades optimized for high pressure
With a remarkably high air pressure of up to 2.44mm/H2O, Pure Wings 3 140mm PWM high-speed Triple Pack is the best choice for water-cooled and air-cooled systems alike. The 9 airflow-optimized fan blades provide enough air pressure to make this fan work great even in demanding configurations.

ICONIC DESIGN
Streamlined look makes it an instant timeless classic
Pure Wings 3 140mm PWM high-speed Triple Pack trims all the fat. Every part and single detail contribute to the functionality and uncompromising performance. This has also been considered in the design of the fan. All outlines and angles serve a purpose, making Pure Wings 3 140mm PWM high-speed Triple Pack a timeless classic and elegant addition to every gaming PC.

RIFLE BEARING TECHNOLOGY
Makes Pure Wings 3 a long-lasting companion
Pure Wings 3 140mm PWM high-speed Triple Pack is built to last. With the proven rifle bearing technology, on average, this fan offers a lifespan of 80,000 hours.

  • 3 fans included
  • Innovative closed loop motor keeps the rpm no matter the resistance
  • Optimized fan frame for outstanding performance on radiators
  • Newly designed fan blades and re-arranged angle for extraordinary air pressure
  • Pure Wings 3 can be operated with very low minimum rpm for very quiet operation
  • Product conception, design and quality control in Germany
Vendor Homepage

https://www.bequiet.com/en/casefans/6699

Category Code

COS

Unit Box Height

0.08

Unit Box Length

0.142

Unit Box Width

0.153

Airflow

122.6 m³/h m³/h

Bearing type

Rifle bearing

Fan diameter

14 cm mm

Fan's mean time to failure (MTTF)

80000 h h

Maximum air pressure

2.44 mmH2O mmH2O

Maximum airflow

72.2 cfm cfm

Noise level (high speed)

30.5 dB dB

Pulse-width modulation (PWM) support

Yes

Quantity per pack

3 pc(s) pc(s)

Rotational speed (max)

1800 RPM RPM

Suitable location

Computer case

Type

Fan

Certification

RU

Fan connector

4-pin

Number of fans

1 fan(s) fan(s)

Product colour

Black

Fan current

0.5 A A

Fan power consumption

6 W W

Rated voltage

12 V V

Voltage

5 – 13.2 V V

Cable length

0.46 m m

Fan dimensions (W x D x H)

140 x 140 x 25 mm mm

Fan weight

188 g g

Package depth

152 mm mm

Package height

142 mm mm

Package weight

610 g g

Package width

80 mm mm

Compliance certificates

CE, RoHS, UKCA, WEEE

Sustainability certificates

Triman

Warranty period

3 year(s) year(s)

Package type

Hanging box

Screws included

Yes

Products per shipping (inner) case

20 pc(s) pc(s)

Shipping (inner) case gross weight

12.9 kg g

Shipping (inner) case height

30.4 cm mm

Shipping (inner) case length

42.3 cm mm

Shipping (inner) case width

34.4 cm mm

Model

BL138

Model name

PURE WINGS 3

Units per Pallet

0

Units per Shipping Box

20

Unit Calculated Volume

0.002275 cubm

Unit Calculated Weight

0.675 kg
