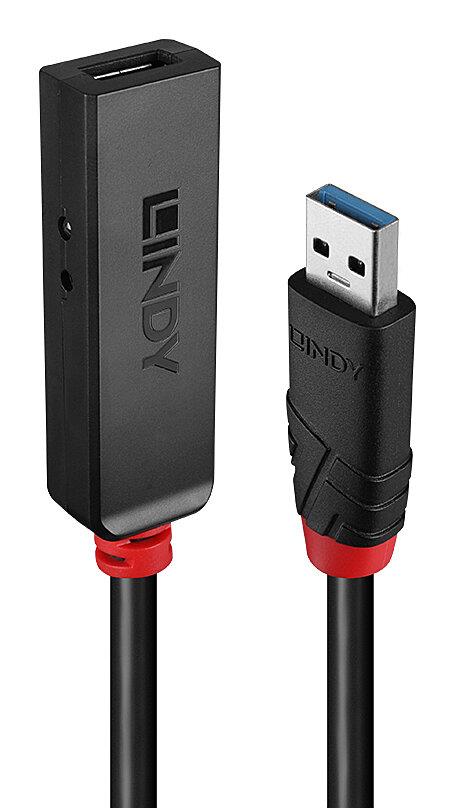

CABLE USB3 EXTENSION 10M/43403 LINDY

77,54

Lindy 10m USB 3.0 Active Extension Slim. Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-C. Data transfer rate: 5000 Mbit/s, Product colour: Black, Housing material: Acrylonitrile butadiene styrene (ABS). Power supply type: DC. Weight: 260 g, Connector 1 dimensions (WxDxH): 41.1 x 16.5 x 9.5 mm, Connector 2 dimensions (WxDxH): 67.5 x 22 x 13.5 mm. Quantity per pack: 1 pc(s), Package width: 236 mm, Package depth: 255 mm

ΑΓΟΡΑ

Εξαντλημένο

Κωδικός προϊόντος: 1431468 Κατηγορία: Μάρκα:

The Lindy USB 3.0 Active Extension Cable uses built-in active electronics to extend the cable length of a USB 3.0 device by an additional 3m whilst continuing to support data transfer rates of up to 5Gbps. With its USB A male and USB A female connector it allows Type A devices such as storage devices, webcams and other Type A devices to be connected at longer distances to PCs, laptops and tablets, while also ensuring flexible positioning.

Up to 5 of these USB 3.0 Active Extensions Slim can be chained together. In addition, a maximum of 5 of the different cable lengths of these USB 3.0 Active Extensions Slim can be combined with each other. The only exception is the 15m version No. 43404: as it has 2 chipsets, a maximum of 3 other USB 3.0 Active Extensions Slim can be combined with it.

The Lindy USB 3.0 Active Extension Slim is supplied with power via the USB bus, but also has a DC socket for connecting a power supply unit for devices with high power requirements or if you want to connect several cables in series.

The Lindy USB 3.0 Active Extension Cable is compatible with all USB Type A equipped computers. The cable's unique and slim design allows installation in narrow surroundings – an advantage over other active USB leads which use bulky connectors. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss, ideal for both professional and first time users.

Information about USB 3.0, 3.1 & 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.

  • USB 3.0 Active Extension Repeater Lead
  • Supports transfer rates up to 5Gbps
  • For even greater distances simply connect up to 5 cables in series
  • USB Power Adapter cable included
Vendor Homepage

https://www.lindy.eu/10m-USB-3-0-Active-Extension-Slim.htm?websale8=ld0101.ld021102&pi=43403&ci=10

Category Code

IFH

Unit Box Height

0.33

Unit Box Length

0.31

Unit Box Width

0.055

Host interface

USB 3.2 Gen 1 (3.1 Gen 1) Type-C

Hub interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-C

Ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

AWG wire size

26

Cable diameter

6.5 mm mm

Cable jacket material

Polyvinyl chloride (PVC)

Cable length

10 m m

Cable type

Round cable

Certification

CE, FCC, RoHS & REACH, CP65

Conductor material

Tinned copper

Connector contacts plating

Nickel

Data transfer rate

5000 Mbit/s Mbit/s

Housing material

Acrylonitrile butadiene styrene (ABS)

LED indicators

Yes

Plug and Play

Yes

Product colour

Black

Transmission medium

Twisted pair

Power supply type

DC

Connector 1 dimensions (WxDxH)

41.1 x 16.5 x 9.5 mm mm

Connector 2 dimensions (WxDxH)

67.5 x 22 x 13.5 mm mm

Weight

260 g g

Package depth

255 mm mm

Package type

Polybag

Package weight

300 g g

Package width

236 mm mm

Quantity per pack

1 pc(s) pc(s)

Manual

Yes

Quick start guide

Yes

Maximum operating temperature

40 °C °C

Minimum operating temperature

0 °C °C

Operating temperature (T-T)

0 – 40 °C °C, 32 – 104 °F °F

Storage temperature (T-T)

-10 – 60 °C °C

Compliance certificates

CE/Federal Communications Commission (FCC)/REACH/RoHS

Model

43403

Units per Shipping Box

1

Unit Calculated Volume

0.0056265 cubm

Unit Calculated Weight

0.87 kg
